Aligning OAK-D Pro IMU orientation with camera

hithaishree

Hi everyone,

I'm using an OAK-D Pro with auto-focus to capture a flat surface (like the ground) while the camera is slightly tilted forward.

However, in the raw point cloud, the points closer to the camera appear elevated (with higher Z values), and the points farther away appear lower. So, the flat surface looks like a ramp even though it's flat in reality.

I suspect this is due to a mismatch between the camera's orientation and the IMU's orientation.

When the camera is upright and facing a wall, the IMU reports a pitch of ~90°.
When the camera is tilted down to face the ground, the pitch becomes ~0°.

I tried applying IMU-based rotation correction to align the point cloud, but the distortion still persists at different camera angles.

I also tried checking the IMU-to-camera transform using getCameraToImuExtrinsics(), but I got the following error:

RuntimeError: IMU calibration data is not available on device yet.

I'm now planning to:

Read the current calibration using readCalibration2(),
Add or correct the IMU extrinsics using setCameraToImuExtrinsics(),

However, I’m a bit hesitant to proceed, as I’m not entirely sure if this will fix the point cloud alignment, and I’m concerned about unintentionally affecting the camera’s calibration by flashing.

Could anyone who has tried this before confirm whether this is the right way to align the IMU orientation with the camera and fix the depth distortion?

Thanks in advance!

jakaskerl

Hi hithaishree
Please look at this example https://docs.luxonis.com/software/depthai/examples/pointcloud_control/. It should correctly align the RGB+D and apply transformations to the pointcloud.

My suggestion would be not to use the IMU if the camera always has the same orientation. Try manually setting the transform until you are satisfied and keep that. If you intend to use the IMU, make sure it's stationary and use the accelerometer to gather the roll and pitch data if you need too.

Thanks,
Jaka

hithaishree

Hi jakaskerl

Thank you so much for the reply!

I did try out what you suggested. Unfortunately, manually setting a fixed transform isn’t viable for our use case. The OAK-D Pro camera will be mounted on a device that may not always rest on a flat or level surface even though the camera orientation itself remains fixed relative to the device. Moreover, the device will be moved during scans, so we need dynamic alignment.

To handle this, I’ve been using the accelerometer data to compute pitch and roll, and applying a corresponding rotation matrix to gravity-align the point cloud. While this improves alignment to some extent, I still observe a noticeable slope when scanning flat surfaces.

Since I’m relatively new to working with this device, I’d really appreciate your guidance especially if there’s something I might be missing to improve the accuracy of alignment.

jakaskerl

hithaishree
How much of a slope are we talking about?
The IMU is not directly parallel to the housing so the rotation matrix would not be a clean angle, but some degrees (I'm guessing <5deg) off..

Thanks,
Jaka

hithaishree

Hi jakaskerl

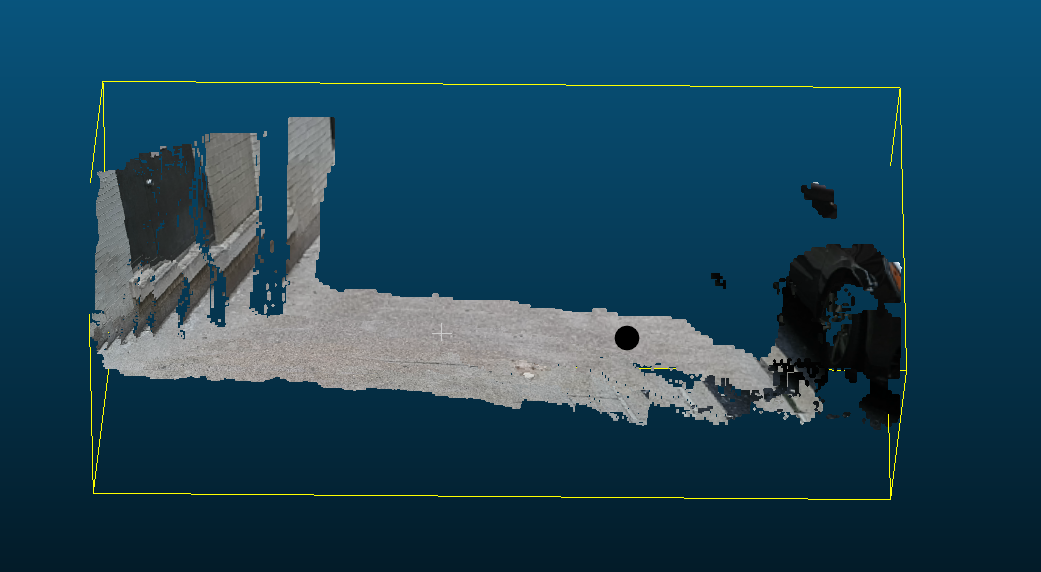

For the flat ground I captured, the calculated slope came out to around 7.5%, and the point cloud appears slightly skewed from left to right, as seen in the image. I’m currently using the accelerometer-derived pitch and roll values to construct a rotation matrix and apply that to correct the camera’s orientation during capture.


pipeline = dai.Pipeline()

monoLeft = pipeline.create(dai.node.MonoCamera)
monoRight = pipeline.create(dai.node.MonoCamera)
monoLeft.setBoardSocket(dai.CameraBoardSocket.CAM_B)
monoRight.setBoardSocket(dai.CameraBoardSocket.CAM_C)
monoLeft.setResolution(dai.MonoCameraProperties.SensorResolution.THE_400_P)
monoRight.setResolution(dai.MonoCameraProperties.SensorResolution.THE_400_P)

# Stereo depth - simplified settings
depth = pipeline.create(dai.node.StereoDepth)
depth.setDefaultProfilePreset(dai.node.StereoDepth.PresetMode.DEFAULT)
depth.setLeftRightCheck(True)
depth.setSubpixel(False)
depth.setDepthAlign(dai.CameraBoardSocket.CAM_A)

# Simple depth filtering
cfg = depth.initialConfig.get()
cfg.postProcessing.temporalFilter.enable = True  # Disable for speed
cfg.postProcessing.speckleFilter.enable = True
cfg.postProcessing.speckleFilter.speckleRange = 28
cfg.postProcessing.spatialFilter.enable = False  # Disable for speed
cfg.postProcessing.thresholdFilter.minRange = 400
cfg.postProcessing.thresholdFilter.maxRange = 8000
depth.initialConfig.set(cfg)

# RGB camera - match depth resolution exactly
colorCam = pipeline.create(dai.node.ColorCamera)
colorCam.setBoardSocket(dai.CameraBoardSocket.CAM_A)
colorCam.setResolution(dai.ColorCameraProperties.SensorResolution.THE_1080_P)
colorCam.setColorOrder(dai.ColorCameraProperties.ColorOrder.BGR)
colorCam.setPreviewSize(640, 400)  # Match mono camera resolution

# IMU - simplified
imu = pipeline.create(dai.node.IMU)
imu.enableIMUSensor(dai.IMUSensor.ACCELEROMETER_RAW, 50)  # Lower frequency
imu.setBatchReportThreshold(1)
imu.setMaxBatchReports(5)

# Outputs
xoutRgb = pipeline.create(dai.node.XLinkOut)
xoutRgb.setStreamName("rgb")
colorCam.preview.link(xoutRgb.input)

xoutDepth = pipeline.create(dai.node.XLinkOut)
xoutDepth.setStreamName("depth")
depth.depth.link(xoutDepth.input)

xoutImu = pipeline.create(dai.node.XLinkOut)
xoutImu.setStreamName("imu")
imu.out.link(xoutImu.input)

monoLeft.out.link(depth.left)
monoRight.out.link(depth.right)

def get_quick_imu_reading(imu_queue, timeout_ms=500):
    """Get IMU reading quickly with timeout"""
    import time
    start_time = time.time()

    while (time.time() - start_time) < (timeout_ms / 1000.0):
        try:
            if imu_queue.has():
                imu_data = imu_queue.get()
                if imu_data.packets:
                    accel = imu_data.packets[-1].acceleroMeter
                    return [accel.x, accel.y, accel.z]
        except:
            continue

    print("IMU timeout - using default orientation")
    return None

def create_rotation_matrix(pitch_deg, roll_deg):
    """Create rotation matrix from pitch and roll in degrees"""
    pitch_rad = np.radians(pitch_deg)
    roll_rad = np.radians(roll_deg)

    # Rotation around X-axis (pitch)
    Rx = np.array([
        [1, 0, 0],
        [0, np.cos(pitch_rad), -np.sin(pitch_rad)],
        [0, np.sin(pitch_rad), np.cos(pitch_rad)]
    ])

    # Rotation around Y-axis (roll)
    Ry = np.array([
        [np.cos(roll_rad), 0, np.sin(roll_rad)],
        [0, 1, 0],
        [-np.sin(roll_rad), 0, np.cos(roll_rad)]
    ])

    return Rx @ Ry

def create_simple_pointcloud(rgb_frame, depth_frame, fx, fy, cx, cy, R_align=None):
    points = []
    colors = []

    depth_h, depth_w = depth_frame.shape
    rgb_h, rgb_w = rgb_frame.shape[:2]

    print(f"Depth: {depth_h}x{depth_w}, RGB: {rgb_h}x{rgb_w}")

    # Resize RGB to match depth dimensions exactly
    if depth_h != rgb_h or depth_w != rgb_w:
        rgb_resized = cv2.resize(rgb_frame, (depth_w, depth_h))
    else:
        rgb_resized = rgb_frame

    # Simple loop - every 2nd pixel for speed, with bounds checking
    for y in range(0, depth_h, 2):
        for x in range(0, depth_w, 2):
            # Bounds check
            if y >= depth_h or x >= depth_w:
                continue

            z = depth_frame[y, x] / 1000.0  # Convert to meters

            if z == 0 or z > 8.0 or z < 0.4:
                continue

            # Project to 3D
            X = (x - cx) * z / fx
            Y = (y - cy) * z / fy
            Z = z

            point = np.array([X, Y, Z])

            # Apply rotation if provided
            if R_align is not None:
                point = R_align @ point

            # Get color from resized RGB
            color = rgb_resized[y, x] / 255.0

            points.append(point)
            colors.append(color[[2, 1, 0]])  # BGR to RGB

    return np.array(points), np.array(colors)

# Main execution
print("SIMPLE VERSION: Press SPACE to save point cloud, 'q' to quit")
print("Press 'r' to reset IMU reading")

current_rotation = None

with dai.Device(pipeline) as device:
    rgbQueue = device.getOutputQueue("rgb", maxSize=1, blocking=False)
    depthQueue = device.getOutputQueue("depth", maxSize=1, blocking=False)
    imuQueue = device.getOutputQueue("imu", maxSize=1, blocking=False)

    print("Ready! Camera should be showing preview...")

    while True:
        try:
            # Get latest frames
            if rgbQueue.has():
                rgbFrame = rgbQueue.get().getCvFrame()
            else:
                continue

            if depthQueue.has():
                depthFrame = depthQueue.get().getFrame()
            else:
                continue

            # Show preview - ensure same dimensions
            depth_colorized = cv2.applyColorMap(
                cv2.convertScaleAbs(depthFrame, alpha=0.03),
                cv2.COLORMAP_JET
            )

            # Resize depth to match RGB if needed
            if rgbFrame.shape[:2] != depth_colorized.shape[:2]:
                depth_colorized = cv2.resize(depth_colorized,
                                           (rgbFrame.shape[1], rgbFrame.shape[0]))

            overlay = cv2.addWeighted(rgbFrame, 0.7, depth_colorized, 0.3, 0)

            # Add text overlay
            if current_rotation is not None:
                cv2.putText(overlay, f"Pitch: {current_rotation[0]:.1f}° Roll: {current_rotation[1]:.1f}°",
                           (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 0), 2)
            else:
                cv2.putText(overlay, "Press 'r' to read IMU orientation",
                           (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 0, 255), 2)

            cv2.putText(overlay, "SPACE: Save | R: Read IMU | Q: Quit",
                       (10, overlay.shape[0] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (255, 255, 255), 1)

            cv2.imshow("DepthAI Preview", overlay)

            key = cv2.waitKey(1) & 0xFF

            if key == ord('q'):
                break
            elif key == ord('r'):
                print("Reading IMU orientation...")
                accel_data = get_quick_imu_reading(imuQueue)

                if accel_data:
                    ax, ay, az = accel_data
                    # Normalize
                    norm = np.sqrt(ax**2 + ay**2 + az**2)
                    if norm > 0:
                        ax, ay, az = ax/norm, ay/norm, az/norm

                        # Calculate pitch and roll
                        pitch = np.degrees(np.arctan2(-ax, np.sqrt(ay**2 + az**2)))
                        roll = np.degrees(np.arctan2(ay, az))

                        current_rotation = (pitch, roll)
                        print(f"✅ IMU reading: Pitch={pitch:.1f}°, Roll={roll:.1f}°")
                    else:
                        print("❌ Bad IMU reading")
                else:
                    print("❌ Failed to get IMU reading")

            elif key == ord(' '):  # Spacebar
                print("Capturing point cloud...")

                # Get camera intrinsics
                calib = device.readCalibration()
                intr = calib.getCameraIntrinsics(dai.CameraBoardSocket.CAM_A, 640, 400)
                fx, fy = intr[0][0], intr[1][1]
                cx, cy = intr[0][2], intr[1][2]

                # Create rotation matrix if we have IMU data
                R_align = None
                if current_rotation:
                    R_align = create_rotation_matrix(current_rotation[0], current_rotation[1])
                    print(f"Applying rotation: Pitch={current_rotation[0]:.1f}°, Roll={current_rotation[1]:.1f}°")
                else:
                    print("No IMU data - saving without gravity alignment")

                # Create point cloud
                points, colors = create_simple_pointcloud(
                    rgbFrame, depthFrame, fx, fy, cx, cy, R_align
                )

                if len(points) > 100:
                    # Create Open3D point cloud
                    pcd = o3d.geometry.PointCloud()
                    pcd.points = o3d.utility.Vector3dVector(points)
                    pcd.colors = o3d.utility.Vector3dVector(colors)

                    # Light filtering only
                    if len(points) > 500:
                        pcd, _ = pcd.remove_statistical_outlier(nb_neighbors=10, std_ratio=3.0)

                    # Save
                    timestamp = datetime.now().strftime("%Y%m%d_%H%M%S")
                    ply_path = output_dir / f"pointcloud_simple_{timestamp}.ply"
                    las_path = output_dir / f"pointcloud_simple_{timestamp}.las"
                    laz_path = output_dir / f"pointcloud_simple_{timestamp}.laz"

                    try:
                        o3d.io.write_point_cloud(str(ply_path), pcd)
                        print(f"✅ Saved PLY: {ply_path} ({len(pcd.points)} points)")

                        header = laspy.LasHeader(point_format=3, version="1.2")
                        las = laspy.LasData(header)
                        las.x, las.y, las.z = points[:, 0], points[:, 1], points[:, 2]
                        las.red = (colors[:, 0] * 65535).astype(np.uint16)
                        las.green = (colors[:, 1] * 65535).astype(np.uint16)
                        las.blue = (colors[:, 2] * 65535).astype(np.uint16)
                        las.write(las_path)
                        print(f"✅ Saved LAS: {las_path}")

                        subprocess.run([str(laszip_exe), "-i", str(las_path), "-o", str(laz_path)], check=True)
                        print(f"✅ Saved LAZ: {laz_path}")

                    except Exception as e:
                        print(f"❌ Failed to save one or more point cloud formats: {e}")

                else:
                    print("❌ Not enough valid points generated")



        except Exception as e:
            print(f"Error: {e}")
            import traceback
            traceback.print_exc()
            break

    cv2.destroyAllWindows()
    print("Done!")

jakaskerl

hithaishree
Can you try with this V3 scripts? luxonis/depthai-coreblob/main/examples/python/RVC2/VSLAM/basalt_vio_rtabmap_slam.py to check if the issue is with the software.

Thanks,
Jaka
