Hi
we tried below example with OAK-Thermal.
https://docs.luxonis.com/software/depthai/examples/thermal_align/
But we met some issue when we executes it. So added the message here. Please help us how to handle this issue.
Best regards,
Ryan.

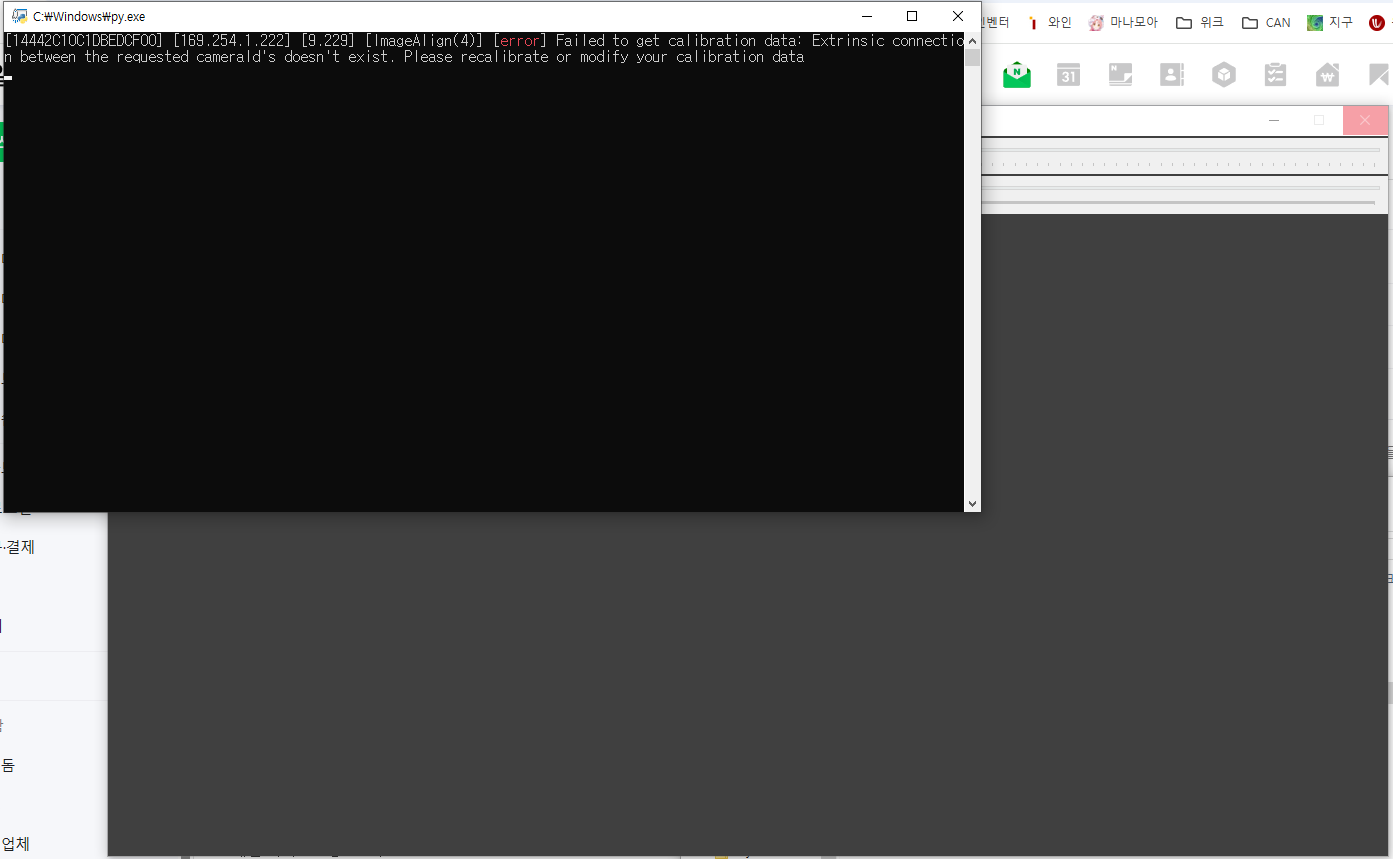

error message with OAK-Thermal
Hi,
can you check if this script returns any calibration data: luxonis/depthai-pythonblob/main/examples/calibration/calibration_dump.py, and post the result.
Best regards,
Lovro
7 days later
Hi lovro

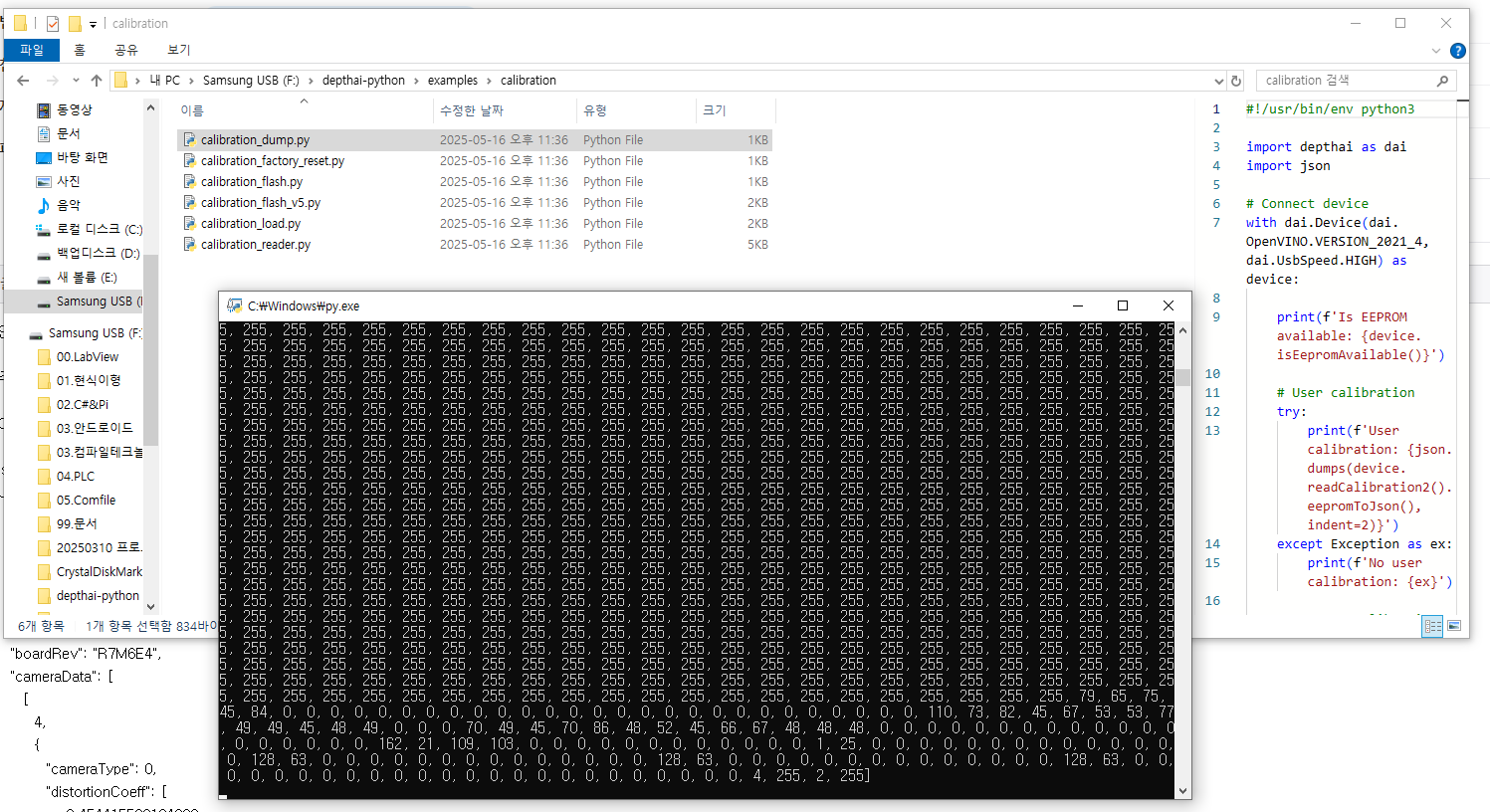

Thank you for your help. And i prepared additional information for your checking.
If you need any thing more please let me know.
<Printed messages>
Is EEPROM available: True
User calibration: {
"batchName": "",
"batchTime": 1735202210,
"boardConf": "nIR-C55M11-01",
"boardCustom": "",
"boardName": "MD2084-ASM",
"boardOptions": 6401,
"boardRev": "R7M6E4",
"cameraData": [
[
4,
{
"cameraType": 0,
"distortionCoeff": [
-0.454415500164032,
0.1640443205833435,
-0.002336567034944892,
0.00429932214319706,
0.0,
-0.004233055282384157,
0.0,
0.0,
0.0,
0.0,
0.0,
0.0,
0.0,
0.0
],
"extrinsics": {
"rotationMatrix": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"specTranslation": {
"x": -0.0,
"y": -0.0,
"z": -0.0
},
"toCameraSocket": -1,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"height": 192,
"intrinsicMatrix": [
[
191.17156982421875,
0.0,
122.30110168457031
],
[
0.0,
191.3694305419922,
100.15934753417969
],
[
0.0,
0.0,
1.0
]
],
"lensPosition": 0,
"specHfovDeg": 90.0,
"width": 256
}
],
[
0,
{
"cameraType": 0,
"distortionCoeff": [
-9.54369831085205,
40.616798400878906,
-0.004062927793711424,
-0.00120364420581609,
5.353804588317871,
-9.156692504882812,
36.861209869384766,
21.438114166259766,
0.0,
0.0,
0.0,
0.0,
0.012248537503182888,
-0.002083621686324477
],
"extrinsics": {
"rotationMatrix": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"specTranslation": {
"x": -0.0,
"y": -0.0,
"z": -0.0
},
"toCameraSocket": -1,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"height": 1080,
"intrinsicMatrix": [
[
1383.85595703125,
0.0,
948.7650146484375
],
[
0.0,
1383.2425537109375,
551.3648681640625
],
[
0.0,
0.0,
1.0
]
],
"lensPosition": 0,
"specHfovDeg": 68.7938003540039,
"width": 1920
}
]
],
"deviceName": "",
"hardwareConf": "F1-FV04-BC000",
"housingExtrinsics": {
"rotationMatrix": [
[
1.0,
0.0,
0.0
],
[
0.0,
1.0,
0.0
],
[
0.0,
0.0,
1.0
]
],
"specTranslation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
},
"toCameraSocket": 4,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"imuExtrinsics": {
"rotationMatrix": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"specTranslation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
},
"toCameraSocket": -1,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"miscellaneousData": [],
"productName": "OAK-T",
"stereoEnableDistortionCorrection": true,
"stereoRectificationData": {
"leftCameraSocket": 255,
"rectifiedRotationLeft": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"rectifiedRotationRight": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"rightCameraSocket": 255
},
"stereoUseSpecTranslation": true,
"version": 7,
"verticalCameraSocket": -1
}
Factory calibration: {
"batchName": "",
"batchTime": 1735202210,
"boardConf": "nIR-C55M11-01",
"boardCustom": "",
"boardName": "MD2084-ASM",
"boardOptions": 6401,
"boardRev": "R7M6E4",
"cameraData": [
[
4,
{
"cameraType": 0,
"distortionCoeff": [
-0.454415500164032,
0.1640443205833435,
-0.002336567034944892,
0.00429932214319706,
0.0,
-0.004233055282384157,
0.0,
0.0,
0.0,
0.0,
0.0,
0.0,
0.0,
0.0
],
"extrinsics": {
"rotationMatrix": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"specTranslation": {
"x": -0.0,
"y": -0.0,
"z": -0.0
},
"toCameraSocket": -1,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"height": 192,
"intrinsicMatrix": [
[
191.17156982421875,
0.0,
122.30110168457031
],
[
0.0,
191.3694305419922,
100.15934753417969
],
[
0.0,
0.0,
1.0
]
],
"lensPosition": 0,
"specHfovDeg": 90.0,
"width": 256
}
],
[
0,
{
"cameraType": 0,
"distortionCoeff": [
-9.54369831085205,
40.616798400878906,
-0.004062927793711424,
-0.00120364420581609,
5.353804588317871,
-9.156692504882812,
36.861209869384766,
21.438114166259766,
0.0,
0.0,
0.0,
0.0,
0.012248537503182888,
-0.002083621686324477
],
"extrinsics": {
"rotationMatrix": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"specTranslation": {
"x": -0.0,
"y": -0.0,
"z": -0.0
},
"toCameraSocket": -1,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"height": 1080,
"intrinsicMatrix": [
[
1383.85595703125,
0.0,
948.7650146484375
],
[
0.0,
1383.2425537109375,
551.3648681640625
],
[
0.0,
0.0,
1.0
]
],
"lensPosition": 0,
"specHfovDeg": 68.7938003540039,
"width": 1920
}
]
],
"deviceName": "",
"hardwareConf": "F1-FV04-BC000",
"housingExtrinsics": {
"rotationMatrix": [
[
1.0,
0.0,
0.0
],
[
0.0,
1.0,
0.0
],
[
0.0,
0.0,
1.0
]
],
"specTranslation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
},
"toCameraSocket": 4,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"imuExtrinsics": {
"rotationMatrix": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"specTranslation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
},
"toCameraSocket": -1,
"translation": {
"x": 0.0,
"y": 0.0,
"z": 0.0
}
},
"miscellaneousData": [],
"productName": "OAK-T",
"stereoEnableDistortionCorrection": true,
"stereoRectificationData": {
"leftCameraSocket": 255,
"rectifiedRotationLeft": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"rectifiedRotationRight": [
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
],
[
0.0,
0.0,
0.0
]
],
"rightCameraSocket": 255
},
"stereoUseSpecTranslation": true,
"version": 7,
"verticalCameraSocket": -1
}
User calibration raw: [7, 0, 170, 85, 2, 0, 0, 0, 0, 77, 68, 50, 48, 56, 52, 45, 65, 83, 77, 0, 0, 0, 0, 0, 0, 82, 55, 77, 54, 69, 52, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 255, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 56, 4, 128, 7, 0, 100, 251, 172, 68, 0, 0, 0, 0, 246, 48, 109, 68, 0, 0, 0, 0, 195, 231, 172, 68, 90, 215, 9, 68, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 253, 178, 24, 193, 154, 119, 34, 66, 79, 34, 133, 187, 153, 195, 157, 186, 94, 82, 171, 64, 208, 129, 18, 193, 225, 113, 19, 66, 66, 129, 171, 65, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 23, 174, 72, 60, 95, 141, 8, 187, 109, 150, 137, 66, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 192, 0, 0, 1, 0, 236, 43, 63, 67, 0, 0, 0, 0, 42, 154, 244, 66, 0, 0, 0, 0, 147, 94, 63, 67, 150, 81, 200, 66, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 38, 169, 232, 190, 60, 251, 39, 62, 23, 33, 25, 187, 84, 225, 140, 59, 0, 0, 0, 0, 113, 181, 138, 187, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 180, 66, 0, 4, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 79, 65, 75, 45, 84, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 110, 73, 82, 45, 67, 53, 53, 77, 49, 49, 45, 48, 49, 0, 0, 0, 70, 49, 45, 70, 86, 48, 52, 45, 66, 67, 48, 48, 48, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 162, 21, 109, 103, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 25, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 4, 255, 2, 255]
Factory calibration raw: [7, 0, 170, 85, 2, 0, 0, 0, 0, 77, 68, 50, 48, 56, 52, 45, 65, 83, 77, 0, 0, 0, 0, 0, 0, 82, 55, 77, 54, 69, 52, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 255, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 56, 4, 128, 7, 0, 100, 251, 172, 68, 0, 0, 0, 0, 246, 48, 109, 68, 0, 0, 0, 0, 195, 231, 172, 68, 90, 215, 9, 68, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 253, 178, 24, 193, 154, 119, 34, 66, 79, 34, 133, 187, 153, 195, 157, 186, 94, 82, 171, 64, 208, 129, 18, 193, 225, 113, 19, 66, 66, 129, 171, 65, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 23, 174, 72, 60, 95, 141, 8, 187, 109, 150, 137, 66, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 192, 0, 0, 1, 0, 236, 43, 63, 67, 0, 0, 0, 0, 42, 154, 244, 66, 0, 0, 0, 0, 147, 94, 63, 67, 150, 81, 200, 66, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 38, 169, 232, 190, 60, 251, 39, 62, 23, 33, 25, 187, 84, 225, 140, 59, 0, 0, 0, 0, 113, 181, 138, 187, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 180, 66, 0, 4, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 255, 79, 65, 75, 45, 84, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 110, 73, 82, 45, 67, 53, 53, 77, 49, 49, 45, 48, 49, 0, 0, 0, 70, 49, 45, 70, 86, 48, 52, 45, 66, 67, 48, 48, 48, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 162, 21, 109, 103, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 25, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 128, 63, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 4, 255, 2, 255]
Best regards,
Ryan.
4 days later
RyanLee
The device was not calibrated. Please make a RMA form (https://www.luxonis.com/rma) so we can replace it ASAP.
Thanks,
Jaka
Thanks @jkchen46033
