Recovery of bricked unit

Douglas

In setting up a new oak4 d pro w unit, a flashing of the os has seemingly bricked the unit. I don't see any led light, no device in adb devices, no device from lsusb. The process for reprogramming the os was the same as I have successfully performed on another old oak4 d pro unit previously. I was flashing 1.6.0 from luxonis_os_rvc4_debug-1.6.0.tar.xz linked https://rvc4.docs.luxonis.com/software/depthai-components/luxonis-os/#Luxonis%20OS-Updating%20OS-Full%20OS%20Flash

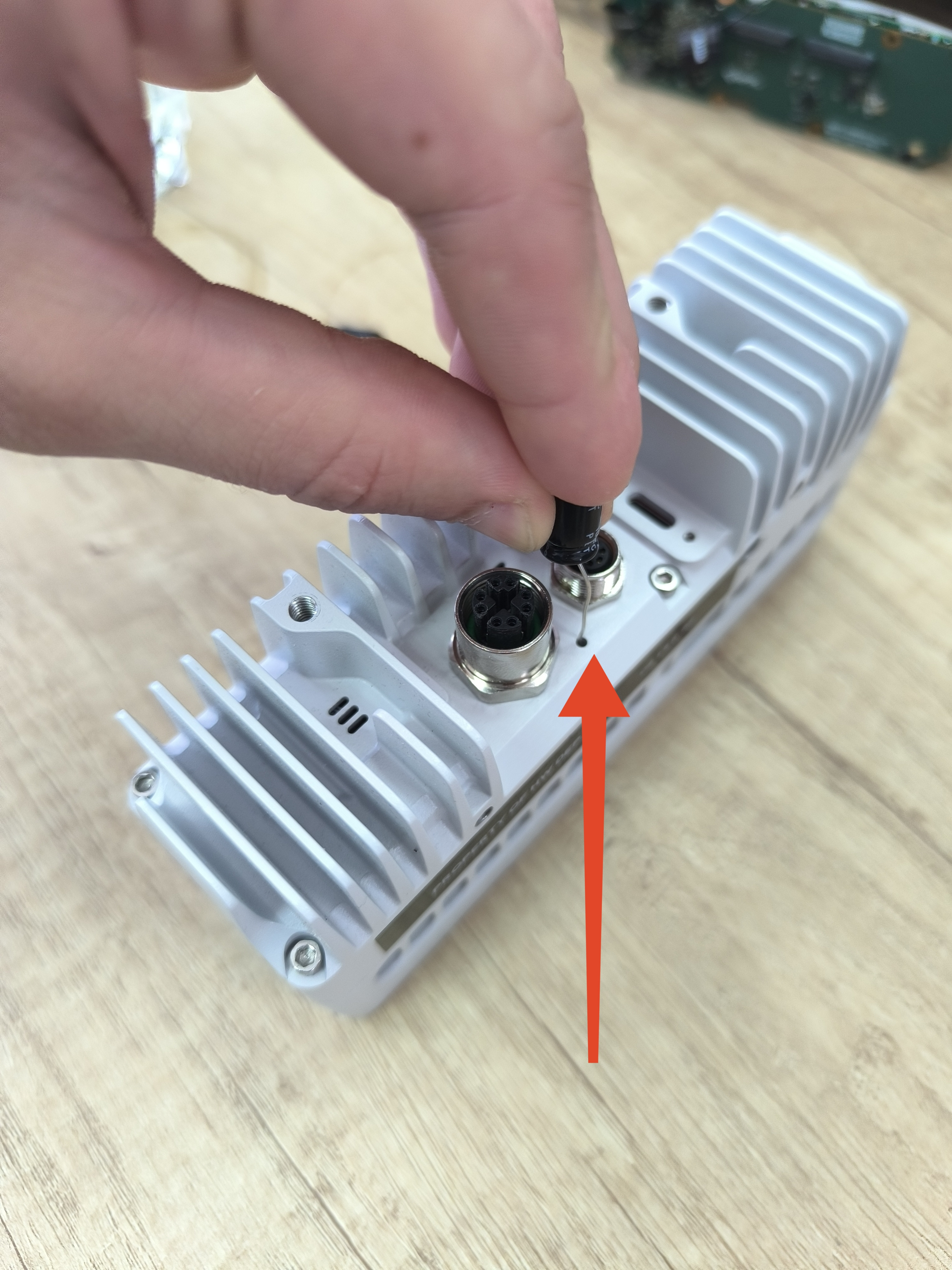

What is the correct way to go about resolving this? I see there is a reset pin. I don't see any specific instructions for v4 devices, but in other issues I see described to push the reset button, boot up the device, and then let go of the reset button. After doing this, I don't see any usb device via lsusb, is there some other process?

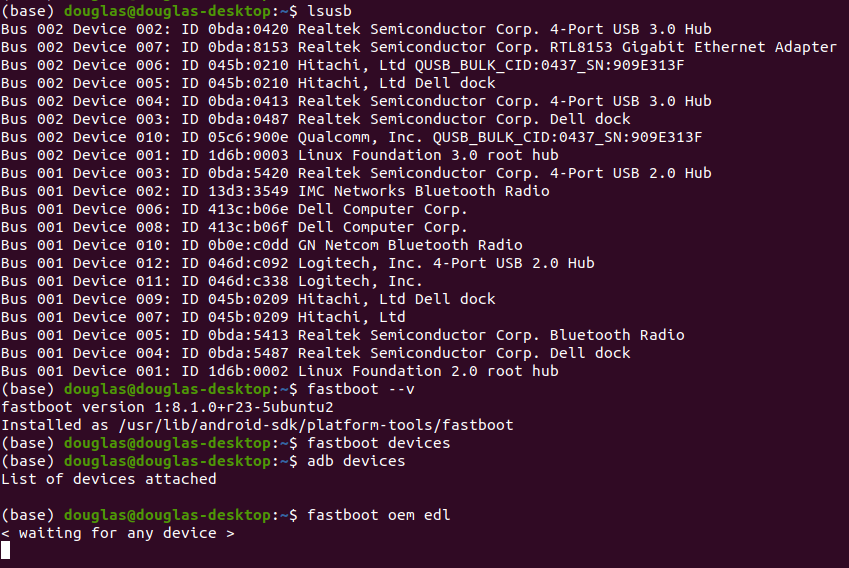

lsusb after attempting recovery mode:
lsusb

Bus 002 Device 002: ID 0bda:0420 Realtek Semiconductor Corp. 4-Port USB 3.0 Hub

Bus 002 Device 007: ID 0bda:8153 Realtek Semiconductor Corp. RTL8153 Gigabit Ethernet Adapter

Bus 002 Device 006: ID 045b:0210 Hitachi, Ltd

Bus 002 Device 005: ID 045b:0210 Hitachi, Ltd Dell dock

Bus 002 Device 004: ID 0bda:0413 Realtek Semiconductor Corp. 4-Port USB 3.0 Hub

Bus 002 Device 003: ID 0bda:0487 Realtek Semiconductor Corp. Dell dock

Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub

Bus 001 Device 003: ID 0bda:5420 Realtek Semiconductor Corp. 4-Port USB 2.0 Hub

Bus 001 Device 002: ID 13d3:3549 IMC Networks Bluetooth Radio

Bus 001 Device 007: ID 413c:b06e Dell Computer Corp.

Bus 001 Device 009: ID 413c:b06f Dell Computer Corp.

Bus 001 Device 011: ID 0b0e:c0dd GN Netcom Bluetooth Radio

Bus 001 Device 012: ID 046d:c338 Logitech, Inc.

Bus 001 Device 013: ID 046d:c092 Logitech, Inc. Dell dock

Bus 001 Device 010: ID 045b:0209 Hitachi, Ltd Dell dock

Bus 001 Device 008: ID 045b:0209 Hitachi, Ltd

Bus 001 Device 006: ID 0bda:5413 Realtek Semiconductor Corp. Bluetooth Radio

Bus 001 Device 005: ID 0bda:5487 Realtek Semiconductor Corp. Dell dock

Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Seemingly successful os flashing that resulted in the bricked unit:

sudo ./qdl --storage ufs --include build/flat-luxonis-debug/ build/flat-luxonis-debug/xbl_s_devprg_ns.melf build/flat-luxonis-debug/rawprogram*.xml build/flat-luxonis-debug/patch*.xml

[sudo] password for douglas:

waiting for programmer...

flashed "xbl_a" successfully

flashed "xbl_config_a" successfully

flashed "multiimgqti_a" successfully

flashed "multiimgoem_a" successfully

flashed "PrimaryGPT" successfully

flashed "BackupGPT" successfully

flashed "PrimaryGPT" successfully

flashed "BackupGPT" successfully

flashed "ddr" successfully

flashed "PrimaryGPT" successfully

flashed "BackupGPT" successfully

flashed "uefi_a" successfully

flashed "aop_a" successfully

flashed "aop_config_a" successfully

flashed "tz_a" successfully

flashed "hyp_a" successfully

flashed "modem_a" successfully at 198540kB/s

flashed "bluetooth_a" successfully

flashed "abl_a" successfully

flashed "dsp_a" successfully

flashed "keymaster_a" successfully

flashed "boot_a" successfully at 70832kB/s

flashed "devcfg_a" successfully

flashed "qupfw_a" successfully

flashed "dtbo_a" successfully

flashed "uefisecapp_a" successfully

flashed "imagefv_a" successfully

flashed "shrm_a" successfully

flashed "cpucp_a" successfully

flashed "featenabler_a" successfully

flashed "xbl_ramdump_a" successfully

flashed "toolsfv" successfully

flashed "logfs" successfully

flashed "storsec" successfully

flashed "PrimaryGPT" successfully

flashed "BackupGPT" successfully

flashed "PrimaryGPT" successfully

flashed "BackupGPT" successfully

flashed "persist" successfully
