I would like to ask how to perform multithreading. Is it moving the saved video out of the loop?
EElusive
- Jun 12, 2024
- Joined Feb 21, 2024
- 0 best answers
I tried to test it. When only two cameras are connected, the frame rate doesn't drop when changing the window size, and the frame rate drops slightly from 27fps to 25fps when saving the video. but when four cameras are connected, the frame rate drops more noticeably for the above two operations, what is the reason for this?
I don't think it's the CPU and disk being overwhelmed as the CPU usage has been around 50%. I think it's possible if I send you the full code to look at.
video3.mp49MB- Edited
Next are the video files for the two cases above. Video 1 is the video of changing the window size frame rate change and video 2 is the video of recording and saving the frame rate change.
video1.mp47MBvideo2.mp43MBI am making changes to the code based on your suggestions. First from colourama import just_fix_windows_console I made changes to from colourama import initialise and initialise.just_fix_windows_console() but did not solve the framerate issue. Secondly, from rich_argparse import RichHelpFormatter is to create the parser and subsequently add parameters, no problem here. Finally, from stress_test import stress_test I comment out this sentence but also the frame rate display is still problematic.
There are currently two cases where the frame rate display can be problematic. Firstly, when I display the video in a window size of 800*480, the frame rate is 27fps, when I click on the window full screen, the frame rate drops to 21fps, and when I shrink the window again, the frame rate increases to 27fps. Secondly, when I try to record and save the video, the frame rate drops to 14fps, from 27fps. I think there is a problem in the placement of the frame rate Calculation statement is in the wrong place.I hope I can get a reply from you, it will be very helpful to me.
- Edited
I'm very sorry, I've streamlined the code, but it's still quite long. Please take a look at it.
import argparse import collections import os import signal import sys import contextlib import math import time from collections import deque from pathlib import Path from typing import Optional from datetime import timedelta import numpy as np import cv2 import depthai as dai import psutil from colorama import just_fix_windows_console from rich_argparse import RichHelpFormatter from stress_test import stress_test SYNC =1 just_fix_windows_console() if globals().get("__compiled__"): image_path = Path(sys.argv[0]).parent.joinpath("save_img_data") elif getattr(sys, "frozen", False): image_path = Path(sys.executable).joinpath("save_img_data") else: image_path = Path(__file__).parent.joinpath("save_img_data") image_path.mkdir(parents=True, exist_ok=True) socket_pair = { "rgb": "rgb", "left": "left", "right": "right", "cama": "rgb", "camb": "left", "camc": "right", "camd": "camd", "came": "came", } parser = argparse.ArgumentParser(formatter_class=RichHelpFormatter, add_help=False) parser.add_argument( "-cres", "--color-resolution", default="1080p", choices={ "1080p", }, help="Select color camera resolution / height. Default: %(default)s", ) parser.add_argument( "-rs", "--resizable-windows", action="store_true", help="Make OpenCV windows resizable. Note: may introduce some artifacts", ) parser.add_argument( "-show", "--show-meta", action="store_true", help=r"List frame metadata (seqno, timestamp, exp, iso etc). Can also toggle with `\`", ) parser.add_argument( "-fps", "--fps", type=float, default=30, help="Camera sensor FPS, applied to all cams" ) args = parser.parse_args() cam_socket_opts = { "rgb": dai.CameraBoardSocket.CAM_A, "left": dai.CameraBoardSocket.CAM_B, "right": dai.CameraBoardSocket.CAM_C, "cama": dai.CameraBoardSocket.CAM_A, "camb": dai.CameraBoardSocket.CAM_B, "camc": dai.CameraBoardSocket.CAM_C, "camd": dai.CameraBoardSocket.CAM_D, } socket_name_map = { "rgb": "rgb", "left": "left", "right": "right", "cam_a": "rgb", "cam_b": "left", "cam_c": "right", "cam_d": "camd", } color_res_opts = { "1080p": dai.ColorCameraProperties.SensorResolution.THE_1080_P, } def clamp(num, v0, v1): return max(v0, min(num, v1)) class FPS: def __init__(self, window_size=30): if not isinstance(window_size, int) or window_size <= 0: msg = "Window size must be a positive integer" raise ValueError(msg) self.dq = collections.deque(maxlen=window_size) self.fps = 0 def update(self, timestamp=None): if timestamp is None: timestamp = time.monotonic() elif not (isinstance(timestamp, (int, float))) or timestamp < 0: msg = "Timestamp must be a positive number" raise ValueError(msg) self.dq.append(timestamp) count = len(self.dq) if count > 1: elapsed_time = self.dq[-1] - self.dq[0] self.fps = count / elapsed_time else: self.fps = 0 def get(self): return self.fps class Cycle: def __init__(self, enum_type, start_item=None): self.items = [item for name, item in vars(enum_type).items() if name.isupper()] self.index = self.items.index(start_item) if start_item else 0 def step(self, n): self.index = (self.index + n) % len(self.items) return self.items[self.index] def next(self): return self.step(1) def prev(self): return self.step(-1) def exit_cleanly(signum, frame): print("Exiting cleanly") cv2.destroyAllWindows() sys.exit(0) def socket_to_socket_opt(socket: dai.CameraBoardSocket) -> str: return str(socket).split(".")[-1].replace("_", "").lower() signal.signal(signal.SIGINT, exit_cleanly) cam_socket_opts = { "CAM_A": dai.CameraBoardSocket.CAM_A, "CAM_B": dai.CameraBoardSocket.CAM_B, "CAM_C": dai.CameraBoardSocket.CAM_C, "CAM_D": dai.CameraBoardSocket.CAM_D, } controls = [] control_queues = {} def create_pipeline(cam_list): pipeline = dai.Pipeline() control = pipeline.createXLinkIn() control.setStreamName("control"+mxid) controls.append(control) sysInfo = pipeline.create(dai.node.SystemLogger) linkOut = pipeline.create(dai.node.XLinkOut) linkOut.setStreamName("sysinfo") sysInfo.out.link(linkOut.input) sysInfo.setRate(args.fps) cam = {} xout = {} for c in cam_list: xout[c] = pipeline.create(dai.node.XLinkOut) xout[c].setStreamName(c) cam[c] = pipeline.create(dai.node.ColorCamera) cam[c].setResolution(color_res_opts[args.color_resolution]) # cam[c].setIspScale(1, 3) # 1920x1080 -> 1280x720 cam[c].video.link(xout[c].input) cam[c].setBoardSocket(cam_socket_opts[c]) cam[c].setFps(args.fps) control.out.link(cam[c].inputControl) cam[c].setBoardSocket(cam_socket_opts[c]) return pipeline def clamp(num, v0, v1): return max(v0, min(num, v1)) class Cycle: def __init__(self, enum_type, start_item=None): self.items = [item for name, item in vars(enum_type).items() if name.isupper()] self.index = self.items.index(start_item) if start_item else 0 def step(self, n): self.index = (self.index + n) % len(self.items) return self.items[self.index] def next(self): return self.step(1) def prev(self): return self.step(-1) def draw_text( frame, text, org, color=(255, 255, 255), bg_color=(128, 128, 128), font_scale=0.5, thickness=1, ): cv2.putText( frame, text, org, cv2.FONT_HERSHEY_SIMPLEX, font_scale, bg_color, thickness + 3, cv2.LINE_AA, ) cv2.putText( frame, text, org, cv2.FONT_HERSHEY_SIMPLEX, font_scale, color, thickness, cv2.LINE_AA, ) class FPSHandler: _fps_bg_color = (0, 0, 0) _fps_color = (255, 255, 255) _fps_type = cv2.FONT_HERSHEY_SIMPLEX _fps_line_type = cv2.LINE_AA def __init__(self, cap=None, max_ticks=100): self._timestamp = None self._start = None self._framerate = cap.get(cv2.CAP_PROP_FPS) if cap is not None else None self._useCamera = cap is None self._iterCnt = 0 self._ticks = {} if max_ticks < 2: # noqa: PLR2004 msg = ( f"Proviced max_ticks value must be 2 or higher (supplied: {max_ticks})" ) raise ValueError(msg) self._maxTicks = max_ticks def next_iter(self): if self._start is None: self._start = time.monotonic() if not self._useCamera and self._timestamp is not None: frame_delay = 1.0 / self._framerate delay = (self._timestamp + frame_delay) - time.monotonic() if delay > 0: time.sleep(delay) self._timestamp = time.monotonic() self._iterCnt += 1 def tick(self, name): if name not in self._ticks: self._ticks[name] = collections.deque(maxlen=self._maxTicks) self._ticks[name].append(time.monotonic()) def tick_fps(self, name): if name in self._ticks and len(self._ticks[name]) > 1: time_diff = self._ticks[name][-1] - self._ticks[name][0] return (len(self._ticks[name]) - 1) / time_diff if time_diff != 0 else 0.0 return 0.0 def fps(self): if self._start is None or self._timestamp is None: return 0.0 time_diff = self._timestamp - self._start return self._iterCnt / time_diff if time_diff != 0 else 0.0 def print_status(self): print("=== TOTAL FPS ===") for name in self._ticks: print(f"[{name}]: {self.tick_fps(name):.1f}") def draw_fps(self, frame, name): frame_fps = f"{name.upper()} FPS: {round(self.tick_fps(name), 1)}" # cv2.rectangle(frame, (0, 0), (120, 35), (255, 255, 255), cv2.FILLED) draw_text( frame, frame_fps, (5, 15), self._fps_color, self._fps_bg_color, ) if "nn" in self._ticks: draw_text( frame, frame_fps, (5, 30), self._fps_color, self._fps_bg_color, ) with contextlib.ExitStack() as stack: device_infos = dai.Device.getAllAvailableDevices() if len(device_infos) == 0: msg = "No devices found!" raise RuntimeError(msg) else: print("Found", len(device_infos), "devices") queues = [] mxids = [] out = {} controlQueues = [] fps_host = {} # FPS computed based on the time we receive frames in app fps_capt = {} # FPS computed based on capture timestamps from device save_frame = False for device_info in device_infos: openvino_version = dai.OpenVINO.Version.VERSION_2021_4 usb_speed = dai.UsbSpeed.SUPER_PLUS device = stack.enter_context( dai.Device(openvino_version, device_info, usb_speed) ) # Note: currently on POE, DeviceInfo.getMxId() and Device.getMxId() are different! print("=== Connected to " + device_info.getMxId()) # 获取所有的 mxid mxid = device.getMxId() mxids.append(mxid) cameras = device.getConnectedCameras() usb_speed = device.getUsbSpeed() cam_list = {c.name for c in cameras} device.startPipeline(create_pipeline(cam_list)) for cam in cam_list: queues.append( { "queue": device.getOutputQueue(name=cam, maxSize=4, blocking=False), "msgs": [], # Frame msgs "mx": device.getMxId(), "cam": cam, } ) input_queue_names = device.getInputQueueNames() for queue_name in input_queue_names: print(queue_name) controlQueue = device.getInputQueue("control" + mxid) controlQueues.append(controlQueue) controlQueue1 = controlQueues[0] controlQueue2 = controlQueues[1] def check_sync(queues, timestamp): matching_frames = [] for q in queues: for i, msg in enumerate(q["msgs"]): time_diff = abs(msg.getTimestamp() - timestamp) # So below 17ms @ 30 FPS => frames are in sync if time_diff <= timedelta(milliseconds=math.ceil(300 / args.fps)): matching_frames.append(i) break if len(matching_frames) == len(queues): # We have all frames synced. Remove the excess ones for i, q in enumerate(queues): q["msgs"] = q["msgs"][matching_frames[i] :] return True return False qSysInfo = device.getOutputQueue(name="sysinfo", maxSize=4, blocking=False) T1 = time.perf_counter() control = "none" show = args.show_meta capture_list: list[str] = [] capture_time = time.strftime("%Y%m%d_%H%M%S") jet_custom = cv2.applyColorMap(np.arange(256, dtype=np.uint8), cv2.COLORMAP_JET) jet_custom[0] = [0, 0, 0] fps_handler = FPSHandler() for q in queues: if args.resizable_windows: cv2.namedWindow(f"{q['cam']} - {q['mx']}", cv2.WINDOW_NORMAL) cv2.resizeWindow(f"{q['cam']} - {q['mx']}", 1000, 800) fourcc = cv2.VideoWriter_fourcc(*"mp4v") filename = f"{q['cam']} - {q['mx']}" + '.mp4' out[f"{q['cam']} - {q['mx']}"] = cv2.VideoWriter(filename, fourcc, 20, (1920, 1080)) fps_host[f"{q['cam']} - {q['mx']}"] = FPS() fps_capt[f"{q['cam']} - {q['mx']}"] = FPS() while True: if SYNC: for q in queues: new_msg = q["queue"].tryGet() if new_msg is not None: q["msgs"].append(new_msg) fps_host[f"{q['cam']} - {q['mx']}"].update() A=fps_host[f"{q['cam']} - {q['mx']}"].get() #print(fps_host[f"{q['cam']} - {q['mx']}"]) fps_capt[f"{q['cam']} - {q['mx']}"].update(new_msg.getTimestamp().total_seconds()) B = fps_capt[f"{q['cam']} - {q['mx']}"].get() #print(fps_capt[f"{q['cam']} - {q['mx']}"]) if check_sync(queues, new_msg.getTimestamp()): #print("=" * 50) for q in queues: #print("Press V to start saving frames and B to stop and exit...") fps_handler.tick(f"{q['cam']} - {q['mx']}") pkg = q["msgs"].pop(0) frame = pkg.getCvFrame() #print(frame) fps_handler.draw_fps(frame, f"{q['cam']} - {q['mx']}") draw_text(frame, f"{pkg.getTimestamp()}", (5, 45)) cv2.imshow(f"{q['cam']} - {q['mx']}", frame) width, height = new_msg.getWidth(), new_msg.getHeight() if save_frame: out[f"{q['cam']} - {q['mx']}"].write(frame) if show: txt = f"[{q['cam']} - {q['mx']:5}, {pkg.getSequenceNum():4}, {pkg.getTimestamp().total_seconds():.6f}] " txt += f"Exp: {pkg.getExposureTime().total_seconds() * 1000:6.3f} ms, " txt += f"ISO: {pkg.getSensitivity():4}, " txt += f"Color temp: {pkg.getColorTemperature()} K" print(txt) capture = f"{q['cam']} - {q['mx']}" in capture_list sysInfo = qSysInfo.get() # Blocking call, will wait until new data has arrived t = sysInfo.chipTemperature pid = os.getpid() p = psutil.Process(pid) with p.oneshot(): print( f"\rFPS: {' '.join([f'{A:>6.2f}|{B:<6.2f}' for q in queues])} " ) else: for q in queues: new_msg = q["queue"].tryGet() if new_msg is not None: fps_handler.tick(f"{q['cam']} - {q['mx']}") frame = new_msg.getCvFrame() fps_handler.draw_fps(frame, f"{q['cam']} - {q['mx']}") draw_text(frame, f"{new_msg.getTimestamp()}", (5, 45)) cv2.imshow(f"{q['cam']} - {q['mx']}", frame) key = cv2.waitKey(1) if key ==ord("y"): controlQueue=controlQueue1 if key == ord("u"): controlQueue=controlQueue2 if key == ord("q"): break elif key == ord("/"): show = not show # print empty string as FPS status new-line separator print("" if show else "\nprinting camera settings: OFF") for q in queues: out[f"{q['cam']} - {q['mx']}"].release() print("Released out") print()
I look forward to getting your answer on how this issue can be resolved.
- Edited
#!/usr/bin/env python3
import argparse
import collections
import os
import signal
import sys
import contextlib
import math
import time
from collections import deque
from pathlib import Path
from typing import Optional
from datetime import timedelta
import numpy as np
import cv2
import depthai as dai
import psutil
from colorama import just_fix_windows_console
from rich.console import Console, ConsoleOptions, ConsoleRenderable, RenderResult
from rich.layout import Layout
from rich.live import Live
from rich.panel import Panel
from rich.prompt import IntPrompt
from rich.text import Text
from rich_argparse import RichHelpFormatter
from stress_test import stress_test, YOLO_LABELS, create_yoloSYNC =1
just_fix_windows_console()
if globals().get("compiled"):
image_path = Path(sys.argv[0]).parent.joinpath("save_img_data")
elif getattr(sys, "frozen", False):
image_path = Path(sys.executable).joinpath("save_img_data")
else:
image_path = Path(file).parent.joinpath("save_img_data")image_path.mkdir(parents=True, exist_ok=True)
socket_pair = {
"rgb": "rgb",
"left": "left",
"right": "right",
"cama": "rgb",
"camb": "left",
"camc": "right",
"camd": "camd",
"came": "came",
}def socket_type_pair(arg):
socket, type_ = arg.split(",")
if socket not in socket_pair:
msg = f"{socket} is not support yet"
raise ValueError(msg)
socket = socket_pair[socket]
if type_ not in {"m", "mono", "c", "color", "t", "tof", "th", "thermal"}:
msg = f"{type} is not support yet"
raise ValueError(msg)
is_color = type in {"c", "color"}
is_tof = type_ in {"t", "tof"}
is_thermal = type_ in {"th", "thermal"}
return [socket, is_color, is_tof, is_thermal]parser = argparse.ArgumentParser(formatter_class=RichHelpFormatter, add_help=False)
parser.add_argument(
"-cams",
"--cameras",
type=socket_type_pair,
nargs="+",
default=[],
help="Which camera sockets to enable, and type: c[olor] / m[ono] / t[of] / th[ermal]. "
"E.g: -cams rgb,m right,c . If not specified, all connected cameras will be used.",
)
parser.add_argument(
"-mres",
"--mono-resolution",
type=str,
default="800p",
choices={"480p", "400p", "720p", "800p", "1200p"},
help="Select mono camera resolution (height). Default: %(default)s",
)
parser.add_argument(
"-cres",
"--color-resolution",
default="1080p",
choices={
"720p",
"800p",
"1080p",
"1200p",
"4k",
"5mp",
"12mp",
"13mp",
"48mp",
"1352X1012",
"1440X1080",
"2024X1520",
"4000X3000",
"5312X6000",
},
help="Select color camera resolution / height. Default: %(default)s",
)
parser.add_argument(
"-rot",
"--rotate",
const="all",
choices={"all", "rgb", "mono"},
nargs="?",
help="Which cameras to rotate 180 degrees. All if not filtered",
)parser.add_argument("-isp3afps", "--isp3afps", type=int, default=0, help="3A FPS to set for all cameras")
parser.add_argument("-ds", "--isp-downscale", default=1, type=int, help="Downscale the ISP output by this factor")
parser.add_argument(
"-rs",
"--resizable-windows",
action="store_true",
help="Make OpenCV windows resizable. Note: may introduce some artifacts",
)
parser.add_argument("-tun", "--camera-tuning", type=Path, help="Path to custom camera tuning database")parser.add_argument("-raw", "--enable-raw", default=False, action="store_true", help="Enable the RAW camera streams")
parser.add_argument(
"-tofraw", "--tof-raw", action="store_true", help="Show just ToF raw output instead of post-processed depth"
)
parser.add_argument(
"-tofamp", "--tof-amplitude", action="store_true", help="Show also ToF amplitude output alongside depth"
)
parser.add_argument(
"-tofcm", "--tof-cm", action="store_true", help="Show ToF depth output in centimeters, capped to 255"
)
parser.add_argument(
"-tofmedian", "--tof-median", choices=[0, 3, 5, 7], default=5, type=int, help="ToF median filter kernel size"
)
parser.add_argument(
"-show",
"--show-meta",
action="store_true",
help=r"List frame metadata (seqno, timestamp, exp, iso etc). Can also toggle with\
",
)
parser.add_argument(
"-rgbprev", "--rgb-preview", action="store_true", help="Show RGBpreview
stream instead of full sizeisp
"
)parser.add_argument("-d", "--device", default="", type=str, help="Optional MX ID of the device to connect to.")
parser.add_argument(
"-ctimeout",
"--connection-timeout",
default=30000,
help="Connection timeout in ms. Default: %(default)s (sets DEPTHAI_CONNECTION_TIMEOUT environment variable)",
)parser.add_argument(
"-btimeout",
"--boot-timeout",
default=30000,
help="Boot timeout in ms. Default: %(default)s (sets DEPTHAI_BOOT_TIMEOUT environment variable)",
)parser.add_argument(
"-stress",
action="store_true",
help="Run stress test. This will override all other options (except -d/--device) and will run a heavy pipeline until the user stops it.",
)parser.add_argument(
"-stereo", action="store_true", default=False, help="Create a stereo depth node if the device has a stereo pair."
)parser.add_argument(
"-yolo",
type=str,
default="",
help=f"Create a yolo detection network on the specified camera. E.g: -yolo cama. Available cameras: {socket_pair.keys()}",
)parser.add_argument("-gui", action="store_true", help="Use GUI instead of CLI")
parser.add_argument(
"-h", "--help", action="store_true", default=False, help="Show this help message and exit"
) # So you can forward --help to stress test, without it being consumed by cam_test.pyparser.add_argument(
"-usbs", "--usbSpeed", type=str, default="usb3", choices=["usb2", "usb3"], help="Force USB communication speed."
)
parser.add_argument(
"-fps", "--fps", type=float, default=30, help="Camera sensor FPS, applied to all cams"
)
args = parser.parse_args()Set timeouts before importing depthai
os.environ["DEPTHAI_CONNECTION_TIMEOUT"] = str(args.connection_timeout)
os.environ["DEPTHAI_BOOT_TIMEOUT"] = str(args.boot_timeout)if args.stress:
stress_test(args.device)
exit(0)if args.help:
parser.print_help()
exit(0)if args.gui:
import cam_test_gui
import cam_test_gui_grid_user as cam_test_gui
cam_test_gui.main()cam_socket_opts = {
"rgb": dai.CameraBoardSocket.CAM_A,
"left": dai.CameraBoardSocket.CAM_B,
"right": dai.CameraBoardSocket.CAM_C,
"cama": dai.CameraBoardSocket.CAM_A,
"camb": dai.CameraBoardSocket.CAM_B,
"camc": dai.CameraBoardSocket.CAM_C,
"camd": dai.CameraBoardSocket.CAM_D,
}socket_name_map = {
"rgb": "rgb",
"left": "left",
"right": "right",
"cam_a": "rgb",
"cam_b": "left",
"cam_c": "right",
"cam_d": "camd",
}rotate = {
"rgb": args.rotate in {"all", "rgb"},
"left": args.rotate in {"all", "mono"},
"right": args.rotate in {"all", "mono"},
"cama": args.rotate in {"all", "rgb"},
"camb": args.rotate in {"all", "mono"},
"camc": args.rotate in {"all", "mono"},
"camd": args.rotate in {"all", "rgb"},
}mono_res_opts = {
"400p": dai.MonoCameraProperties.SensorResolution.THE_400_P,
"480p": dai.MonoCameraProperties.SensorResolution.THE_480_P,
"720p": dai.MonoCameraProperties.SensorResolution.THE_720_P,
"800p": dai.MonoCameraProperties.SensorResolution.THE_800_P,
"1200p": dai.MonoCameraProperties.SensorResolution.THE_1200_P,
}color_res_opts = {
"720p": dai.ColorCameraProperties.SensorResolution.THE_720_P,
"800p": dai.ColorCameraProperties.SensorResolution.THE_800_P,
"1080p": dai.ColorCameraProperties.SensorResolution.THE_1080_P,
"1200p": dai.ColorCameraProperties.SensorResolution.THE_1200_P,
"4k": dai.ColorCameraProperties.SensorResolution.THE_4_K,
"5mp": dai.ColorCameraProperties.SensorResolution.THE_5_MP,
"12mp": dai.ColorCameraProperties.SensorResolution.THE_12_MP,
"13mp": dai.ColorCameraProperties.SensorResolution.THE_13_MP,
"48mp": dai.ColorCameraProperties.SensorResolution.THE_48_MP,
"1352X1012": dai.ColorCameraProperties.SensorResolution.THE_1352X1012,
"1440X1080": dai.ColorCameraProperties.SensorResolution.THE_1440X1080,
"2024X1520": dai.ColorCameraProperties.SensorResolution.THE_2024X1520,
"4000X3000": dai.ColorCameraProperties.SensorResolution.THE_4000X3000,
"5312X6000": dai.ColorCameraProperties.SensorResolution.THE_5312X6000,
}def clamp(num, v0, v1):
return max(v0, min(num, v1))Calculates FPS over a moving window, configurable
class FPS:
def init(self, window_size=30):
if not isinstance(window_size, int) or window_size <= 0:
msg = "Window size must be a positive integer"
raise ValueError(msg)
self.dq = collections.deque(maxlen=window_size)
self.fps = 0def update(self, timestamp=None): if timestamp is None: timestamp = time.monotonic() elif not (isinstance(timestamp, (int, float))) or timestamp < 0: msg = "Timestamp must be a positive number" raise ValueError(msg) self.dq.append(timestamp) count = len(self.dq) if count > 1: elapsed_time = self.dq[-1] - self.dq[0] self.fps = count / elapsed_time else: self.fps = 0 def get(self): return self.fps
class Cycle:
def init(self, enum_type, start_item=None):
self.items = [item for name, item in vars(enum_type).items() if name.isupper()]If start_item is provided, set the index to its position. Otherwise, default to 0
self.index = self.items.index(start_item) if start_item else 0
def step(self, n): self.index = (self.index + n) % len(self.items) return self.items[self.index] def next(self): return self.step(1) def prev(self): return self.step(-1)
def exit_cleanly(signum, frame):
print("Exiting cleanly")
cv2.destroyAllWindows()
sys.exit(0)def socket_to_socket_opt(socket: dai.CameraBoardSocket) -> str:
return str(socket).split(".")[-1].replace("_", "").lower()signal.signal(signal.SIGINT, exit_cleanly)
cam_socket_opts = {
"CAM_A": dai.CameraBoardSocket.CAM_A,
"CAM_B": dai.CameraBoardSocket.CAM_B,
"CAM_C": dai.CameraBoardSocket.CAM_C,
"CAM_D": dai.CameraBoardSocket.CAM_D,
}controls = []
control_queues = {}
def create_pipeline(cam_list):Start defining a pipeline
pipeline = dai.Pipeline()
control = pipeline.createXLinkIn()
control.setStreamName("control"+mxid)
controls.append(control)sysInfo = pipeline.create(dai.node.SystemLogger) linkOut = pipeline.create(dai.node.XLinkOut) linkOut.setStreamName("sysinfo") sysInfo.out.link(linkOut.input) sysInfo.setRate(args.fps) cam = {} xout = {} for c in cam_list: xout[c] = pipeline.create(dai.node.XLinkOut) xout[c].setStreamName(c) cam[c] = pipeline.create(dai.node.ColorCamera) cam[c].setResolution(color_res_opts[args.color_resolution]) # cam[c].setIspScale(1, 3) # 1920x1080 -> 1280x720 cam[c].video.link(xout[c].input) cam[c].setBoardSocket(cam_socket_opts[c]) cam[c].setFps(args.fps) control.out.link(cam[c].inputControl) cam[c].setBoardSocket(cam_socket_opts[c]) return pipeline
def clamp(num, v0, v1):
return max(v0, min(num, v1))
class Cycle:
def init(self, enum_type, start_item=None):
self.items = [item for name, item in vars(enum_type).items() if name.isupper()]If start_item is provided, set the index to its position. Otherwise, default to 0
self.index = self.items.index(start_item) if start_item else 0
def step(self, n): self.index = (self.index + n) % len(self.items) return self.items[self.index] def next(self): return self.step(1) def prev(self): return self.step(-1)
def draw_text(
frame,
text,
org,
color=(255, 255, 255),
bg_color=(128, 128, 128),
font_scale=0.5,
thickness=1,
):
cv2.putText(
frame,
text,
org,
cv2.FONT_HERSHEY_SIMPLEX,
font_scale,
bg_color,
thickness + 3,
cv2.LINE_AA,
)
cv2.putText(
frame,
text,
org,
cv2.FONT_HERSHEY_SIMPLEX,
font_scale,
color,
thickness,
cv2.LINE_AA,
)class FPSHandler:
"""
Class that handles all FPS-related operations.Mostly used to calculate different streams FPS, but can also be used to feed the video file based on its FPS property, not app performance (this prevents the video from being sent to quickly if we finish processing a frame earlier than the next video frame should be consumed) """ _fps_bg_color = (0, 0, 0) _fps_color = (255, 255, 255) _fps_type = cv2.FONT_HERSHEY_SIMPLEX _fps_line_type = cv2.LINE_AA def __init__(self, cap=None, max_ticks=100): """ Constructor that initializes the class with a video file object and a maximum ticks amount for FPS calculation Args: cap (cv2.VideoCapture, Optional): handler to the video file object max_ticks (int, Optional): maximum ticks amount for FPS calculation """ self._timestamp = None self._start = None self._framerate = cap.get(cv2.CAP_PROP_FPS) if cap is not None else None self._useCamera = cap is None self._iterCnt = 0 self._ticks = {} if max_ticks < 2: # noqa: PLR2004 msg = ( f"Proviced max_ticks value must be 2 or higher (supplied: {max_ticks})" ) raise ValueError(msg) self._maxTicks = max_ticks def next_iter(self): """Marks the next iteration of the processing loop. Will use `time.sleep` method if initialized with video file object""" if self._start is None: self._start = time.monotonic() if not self._useCamera and self._timestamp is not None: frame_delay = 1.0 / self._framerate delay = (self._timestamp + frame_delay) - time.monotonic() if delay > 0: time.sleep(delay) self._timestamp = time.monotonic() self._iterCnt += 1 def tick(self, name): """ Marks a point in time for specified name Args: name (str): Specifies timestamp name """ if name not in self._ticks: self._ticks[name] = collections.deque(maxlen=self._maxTicks) self._ticks[name].append(time.monotonic()) def tick_fps(self, name): """ Calculates the FPS based on specified name Args: name (str): Specifies timestamps' name Returns: float: Calculated FPS or `0.0` (default in case of failure) """ if name in self._ticks and len(self._ticks[name]) > 1: time_diff = self._ticks[name][-1] - self._ticks[name][0] return (len(self._ticks[name]) - 1) / time_diff if time_diff != 0 else 0.0 return 0.0 def fps(self): """ Calculates FPS value based on `nextIter` calls, being the FPS of processing loop Returns: float: Calculated FPS or `0.0` (default in case of failure) """ if self._start is None or self._timestamp is None: return 0.0 time_diff = self._timestamp - self._start return self._iterCnt / time_diff if time_diff != 0 else 0.0 def print_status(self): """prints total FPS for all names stored in :func:`tick` calls""" print("=== TOTAL FPS ===") for name in self._ticks: print(f"[{name}]: {self.tick_fps(name):.1f}") def draw_fps(self, frame, name): """ Draws FPS values on requested frame, calculated based on specified name Args: frame (numpy.ndarray): Frame object to draw values on name (str): Specifies timestamps' name """ frame_fps = f"{name.upper()} FPS: {round(self.tick_fps(name), 1)}" # cv2.rectangle(frame, (0, 0), (120, 35), (255, 255, 255), cv2.FILLED) draw_text( frame, frame_fps, (5, 15), self._fps_color, self._fps_bg_color, ) if "nn" in self._ticks: draw_text( frame, frame_fps, (5, 30), self._fps_color, self._fps_bg_color, )
https://docs.python.org/3/library/contextlib.html#contextlib.ExitStack
with contextlib.ExitStack() as stack:
device_infos = dai.Device.getAllAvailableDevices()if len(device_infos) == 0: msg = "No devices found!" raise RuntimeError(msg) else: print("Found", len(device_infos), "devices") queues = [] mxids = [] out = {} controlQueues = [] fps_host = {} # FPS computed based on the time we receive frames in app fps_capt = {} # FPS computed based on capture timestamps from device save_frame = False for device_info in device_infos: # Note: the pipeline isn't set here, as we don't know yet what device it is. # The extra arguments passed are required by the existing overload variants openvino_version = dai.OpenVINO.Version.VERSION_2021_4 usb_speed = dai.UsbSpeed.SUPER_PLUS device = stack.enter_context( dai.Device(openvino_version, device_info, usb_speed) ) # Note: currently on POE, DeviceInfo.getMxId() and Device.getMxId() are different! print("=== Connected to " + device_info.getMxId()) # 获取所有的 mxid mxid = device.getMxId() mxids.append(mxid) # 打印所有的 mxid for mxid in mxids: print(mxid) cameras = device.getConnectedCameras() usb_speed = device.getUsbSpeed() print(" >>> MXID:", mxid) print(" >>> Cameras:", *[c.name for c in cameras]) print(" >>> USB speed:", usb_speed.name) cam_list = {c.name for c in cameras} # Get a customized pipeline based on identified device type device.startPipeline(create_pipeline(cam_list)) # Output queue will be used to get the rgb frames from the output defined above for cam in cam_list: queues.append( { "queue": device.getOutputQueue(name=cam, maxSize=4, blocking=False), "msgs": [], # Frame msgs "mx": device.getMxId(), "cam": cam, } ) input_queue_names = device.getInputQueueNames() for queue_name in input_queue_names: print(queue_name) controlQueue = device.getInputQueue("control" + mxid) controlQueues.append(controlQueue) controlQueue1 = controlQueues[0] controlQueue2 = controlQueues[1] def check_sync(queues, timestamp): matching_frames = [] for q in queues: for i, msg in enumerate(q["msgs"]): time_diff = abs(msg.getTimestamp() - timestamp) # So below 17ms @ 30 FPS => frames are in sync if time_diff <= timedelta(milliseconds=math.ceil(300 / args.fps)): matching_frames.append(i) break if len(matching_frames) == len(queues): # We have all frames synced. Remove the excess ones for i, q in enumerate(queues): q["msgs"] = q["msgs"][matching_frames[i] :] return True return False qSysInfo = device.getOutputQueue(name="sysinfo", maxSize=4, blocking=False) # Manual exposure/focus set step EXP_STEP = 500 # us ISO_STEP = 50 LENS_STEP = 3 DOT_STEP = 100 FLOOD_STEP = 100 DOT_MAX = 1200 FLOOD_MAX = 1500 WB_STEP = 200 # Defaults and limits for manual focus/exposure controls lensPos = 150 lensMin = 0 lensMax = 255 expTime = 20000 expMin = 1 expMax = 33000 sensIso = 800 sensMin = 100 sensMax = 1600 dotIntensity = 0 floodIntensity = 0 T1 = time.perf_counter() awb_mode = Cycle(dai.CameraControl.AutoWhiteBalanceMode) anti_banding_mode = Cycle(dai.CameraControl.AntiBandingMode) effect_mode = Cycle(dai.CameraControl.EffectMode) scene_mode = Cycle(dai.CameraControl.SceneMode) control_mode = Cycle(dai.CameraControl.ControlMode) capture_intent = Cycle(dai.CameraControl.CaptureIntent) ae_comp = 0 ae_lock = False awb_lock = False saturation = 0 contrast = 0 brightness = 0 sharpness = 0 luma_denoise = 0 chroma_denoise = 0 wbManual = 4000 control = "none" show = args.show_meta capture_list: list[str] = [] capture_time = time.strftime("%Y%m%d_%H%M%S") jet_custom = cv2.applyColorMap(np.arange(256, dtype=np.uint8), cv2.COLORMAP_JET) jet_custom[0] = [0, 0, 0] fps_handler = FPSHandler() for q in queues: if args.resizable_windows: cv2.namedWindow(f"{q['cam']} - {q['mx']}", cv2.WINDOW_NORMAL) cv2.resizeWindow(f"{q['cam']} - {q['mx']}", 1000, 800) fourcc = cv2.VideoWriter_fourcc(*"mp4v") filename = f"{q['cam']} - {q['mx']}" + '.mp4' out[f"{q['cam']} - {q['mx']}"] = cv2.VideoWriter(filename, fourcc, 20, (1920, 1080)) fps_host[f"{q['cam']} - {q['mx']}"] = FPS() fps_capt[f"{q['cam']} - {q['mx']}"] = FPS() while True: if SYNC: for q in queues: new_msg = q["queue"].tryGet() if new_msg is not None: q["msgs"].append(new_msg) fps_host[f"{q['cam']} - {q['mx']}"].update() A=fps_host[f"{q['cam']} - {q['mx']}"].get() #print(fps_host[f"{q['cam']} - {q['mx']}"]) fps_capt[f"{q['cam']} - {q['mx']}"].update(new_msg.getTimestamp().total_seconds()) B = fps_capt[f"{q['cam']} - {q['mx']}"].get() #print(fps_capt[f"{q['cam']} - {q['mx']}"]) if check_sync(queues, new_msg.getTimestamp()): #print("=" * 50) for q in queues: #print("Press V to start saving frames and B to stop and exit...") fps_handler.tick(f"{q['cam']} - {q['mx']}") pkg = q["msgs"].pop(0) frame = pkg.getCvFrame() #print(frame) fps_handler.draw_fps(frame, f"{q['cam']} - {q['mx']}") draw_text(frame, f"{pkg.getTimestamp()}", (5, 45)) cv2.imshow(f"{q['cam']} - {q['mx']}", frame) #print(f"{q['cam']} - {q['mx']}: {pkg.getTimestamp()}") width, height = new_msg.getWidth(), new_msg.getHeight() if save_frame: out[f"{q['cam']} - {q['mx']}"].write(frame) if show: txt = f"[{q['cam']} - {q['mx']:5}, {pkg.getSequenceNum():4}, {pkg.getTimestamp().total_seconds():.6f}] " txt += f"Exp: {pkg.getExposureTime().total_seconds() * 1000:6.3f} ms, " txt += f"ISO: {pkg.getSensitivity():4}, " txt += f"Color temp: {pkg.getColorTemperature()} K" print(txt) capture = f"{q['cam']} - {q['mx']}" in capture_list if capture: capture_file_info = image_path.joinpath( "capture_" + f"{q['cam']} - {q['mx']}" + "_" + str(width) + "x" + str(height) + "_" + capture_time + "_exp_" + str(int(pkg.getExposureTime().total_seconds() * 1e6)) + "_iso_" + str(pkg.getSensitivity()) + "_" + str(pkg.getColorTemperature()) + "K" + "_" + str(pkg.getSequenceNum()) ).as_posix() capture_list.remove(f"{q['cam']} - {q['mx']}") if capture: filename = capture_file_info + ".png" print("Saving: ", filename) cv2.imencode(".png", frame)[1].tofile(filename) # cv2.imwrite(filename, frame) sysInfo = qSysInfo.get() # Blocking call, will wait until new data has arrived t = sysInfo.chipTemperature pid = os.getpid() p = psutil.Process(pid) with p.oneshot(): print( f"\rFPS: {' '.join([f'{A:>6.2f}|{B:<6.2f}' for q in queues])} " f"\naverage: {t.average:.2f}°C " f"css: {t.css:.2f}°C " f"mss: {t.mss:.2f}°C " f"upa: {t.upa:.2f}°C " f"dss: {t.dss:.2f}°C " f"\ntime: {time.strftime('%H:%M:%S', time.gmtime(time.perf_counter() - T1))} ", f"cpu: {p.cpu_percent()}% ", f"mem: {p.memory_info().rss / 1024 ** 2:.2f} MB", # end="\r", # flush=True, ) else: for q in queues: new_msg = q["queue"].tryGet() if new_msg is not None: fps_handler.tick(f"{q['cam']} - {q['mx']}") frame = new_msg.getCvFrame() fps_handler.draw_fps(frame, f"{q['cam']} - {q['mx']}") draw_text(frame, f"{new_msg.getTimestamp()}", (5, 45)) cv2.imshow(f"{q['cam']} - {q['mx']}", frame) key = cv2.waitKey(1) if key ==ord("y"): controlQueue=controlQueue1 if key == ord("u"): controlQueue=controlQueue2 if key == ord("q"): break elif key == ord("/"): show = not show # print empty string as FPS status new-line separator print("" if show else "\nprinting camera settings: OFF") elif key == ord('v'): save_frame = True print("Frame saved!") sys.stdout.flush() elif key == ord("c"): for item in queues: cam = item['cam'] mx = item['mx'] extracted = f"{cam} - {mx}" capture_list.append(extracted) capture_time = time.strftime("%Y%m%d_%H%M%S") elif key == ord("t"): print("Autofocus trigger (and disable continuous)") ctrl = dai.CameraControl() ctrl.setAutoFocusMode(dai.CameraControl.AutoFocusMode.AUTO) ctrl.setAutoFocusTrigger() controlQueue.send(ctrl) controlQueue.send(ctrl)
for q in queues:
out[f"{q['cam']} - {q['mx']}"].release()
print("Released out")
print()When the camera displays at the original resolution of 1920*1200, the frame rate of the camera is 29fps, but when I reduce the size of the display window of the camera to 1000*800 resolution, the frame rate of the camera is 19fps. Is it normal that the frame rate drops so significantly after I just reduce the display window?
When I run it, I find that sometimes it doesn't display the camera's screen properly, but I just set the sync precision to 10ms.
I set up 4 camera screens to be resizable, and execute the code to get 4 reduced windows, but when I click on the window's zoom button, it doesn't display full screen, it still displays the reduced window size. What is this problem?
The frame rate of the 4 cameras is 30fps, which is basically the same as host-multiple-OAK-sync1.py. I want to set the sync precision to 10ms, so I set the value here to 300, but sometimes the above problem occurs. Is the sync precision set too high?

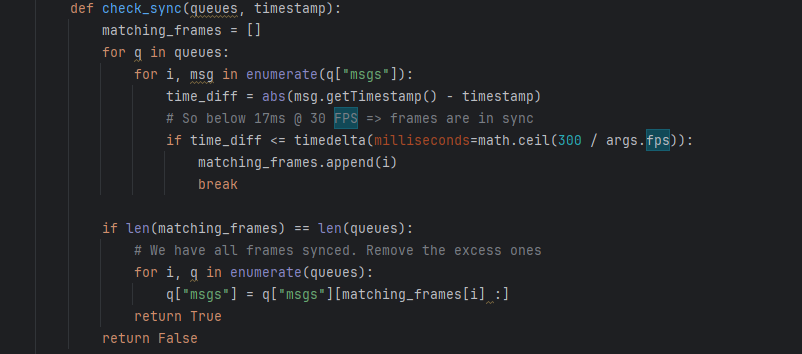

After I set the sync precision to 10ms, it runs with a lot of problems, sometimes it runs for a long time without the camera image and then keeps the error
I'm using two FFC-4P devices to drive 4 cameras with 1080p resolution, running with host-multiple-OAK-sync.py, and the cameras have a frame rate of 30fps. I'd like to modify the precision of the synchronisation of the two devices to be 10ms, but I'm not able to run it out every time, and there are errors reported. How can I fix this?
For host-multiple-OAK-sync.py, how can I modify parameters such as exposure time of the camera or how can I be able to run soft sync of multiple devices on cam_test_modify_user.py. How should I make the modifications?
In order to increase the frame rate using 4 cameras, I have chosen to use 2 OAK-FFC-4P boards. Is there a demo that can run multiple devices for soft sync and can adjust camera parameters like exposure time?
But it still doesn't seem to be working, can you take a look?
while True:
vidFrames1 = videoQueue1.tryGet()
if vidFrames1 is not None:
cv2.imshow('video1', vidFrames1.getCvFrame())
vidFrames2 = videoQueue2.tryGet()
if vidFrames2 is not None:
cv2.imshow('video2', vidFrames2.getCvFrame())
vidFrames3 = videoQueue3.tryGet()
if vidFrames3 is not None:
cv2.imshow('video3', vidFrames3.getCvFrame())
vidFrames4 = videoQueue4.tryGet()
if vidFrames4 is not None:
cv2.imshow('video4', vidFrames4.getCvFrame())ispFrames1 = ispQueue1.tryGet() for ispFrame1 in ispFrames1: if show: txt = f"[{ispFrame1.getSequenceNum()}] " txt += f"Exposure: {ispFrame1.getExposureTime().total_seconds() \* 1000:.3f} ms, " txt += f"ISO: {ispFrame1.getSensitivity()}, " txt += f"Lens position: {ispFrame1.getLensPosition()}, " txt += f"Color temp: {ispFrame1.getColorTemperature()} K" print(txt) cv2.imshow('isp1', ispFrame1.getCvFrame()) ispFrames2 = ispQueue3.tryGet() for ispFrame2 in ispFrames2: if show: txt = f"[{ispFrame2.getSequenceNum()}] " txt += f"Exposure: {ispFrame2.getExposureTime().total_seconds() \* 1000:.3f} ms, " txt += f"ISO: {ispFrame2.getSensitivity()}, " txt += f"Lens position: {ispFrame2.getLensPosition()}, " txt += f"Color temp: {ispFrame2.getColorTemperature()} K" print(txt) cv2.imshow('isp3', ispFrame2.getCvFrame()) ispFrames3 = ispQueue3.tryGet() for ispFrame3 in ispFrames3: if show: txt = f"[{ispFrame3.getSequenceNum()}] " txt += f"Exposure: {ispFrame3.getExposureTime().total_seconds() \* 1000:.3f} ms, " txt += f"ISO: {ispFrame3.getSensitivity()}, " txt += f"Lens position: {ispFrame3.getLensPosition()}, " txt += f"Color temp: {ispFrame3.getColorTemperature()} K" print(txt) cv2.imshow('isp3', ispFrame3.getCvFrame()) ispFrames4 = ispQueue4.tryGet() for ispFrame4 in ispFrames4: if show: txt = f"[{ispFrame4.getSequenceNum()}] " txt += f"Exposure: {ispFrame4.getExposureTime().total_seconds() \* 1000:.3f} ms, " txt += f"ISO: {ispFrame4.getSensitivity()}, " txt += f"Lens position: {ispFrame4.getLensPosition()}, " txt += f"Color temp: {ispFrame4.getColorTemperature()} K" print(txt) cv2.imshow('isp4', ispFrame4.getCvFrame())

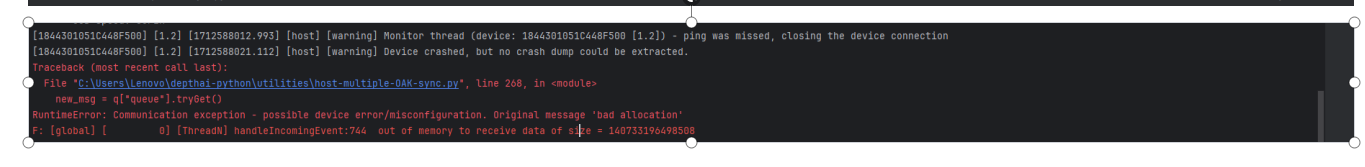

Thank you for your reply. The method of using this frame display is wrong, but I don't quite understand why I can't get the frames for the video stream.
