Warp nodes tears frames at sensor resolution

MatteoL

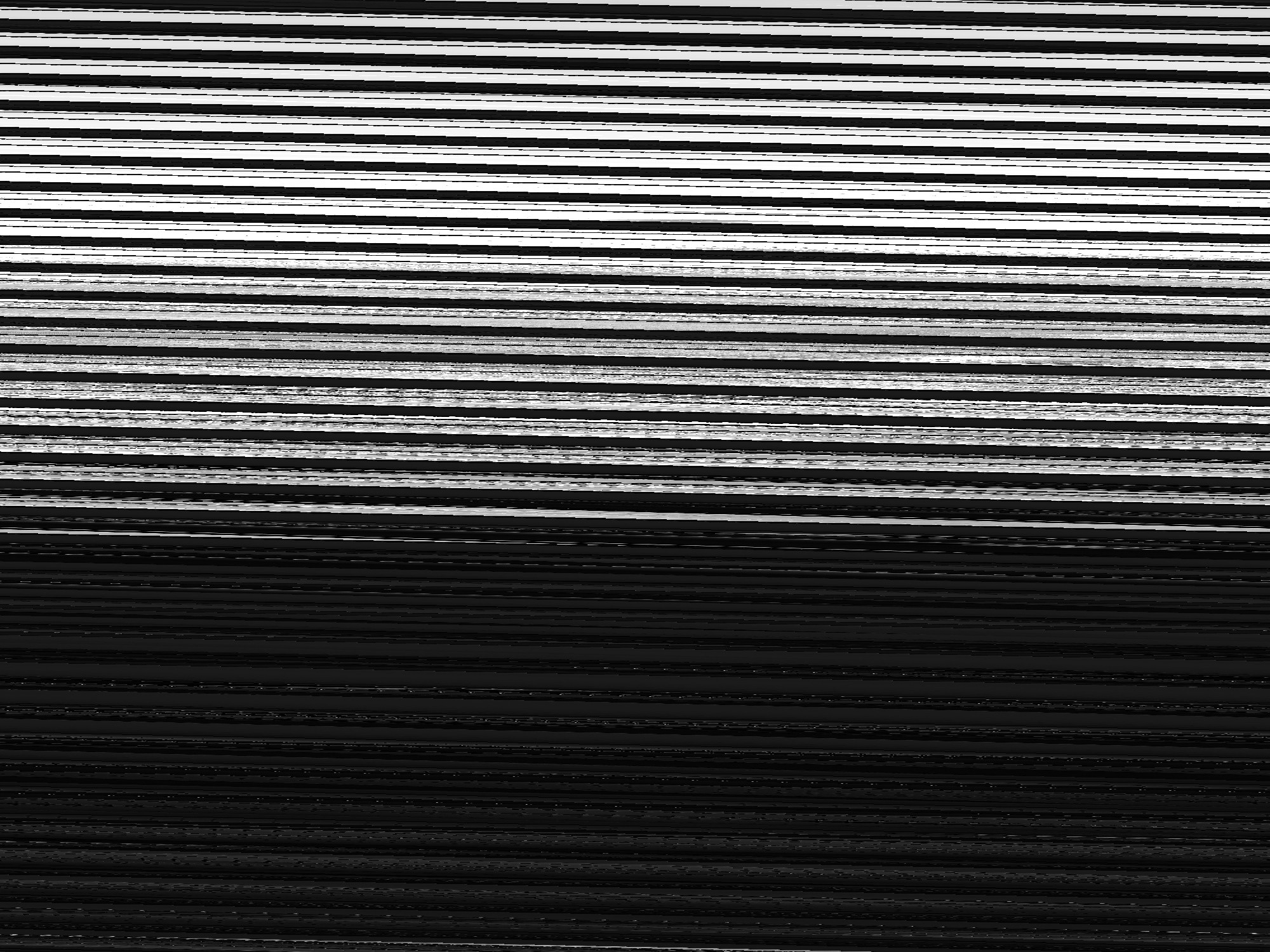

We are porting our application to Oak 4 D and DepthAI v3 but we are encountering issues with the Warp node. I have found that it fails to apply the identity warp mesh when the output resolution has not the 16×9 ratio. The result are images of this kind:

Here it is a minimal reproducible example:

import cv2
import depthai as dai

# OK
RESOLUTION = 7680, 4320
# RESOLUTION = 4096, 2160
# RESOLUTION = 2560, 1440
# RESOLUTION = 1920, 1080

# Error
# RESOLUTION = 8000, 6000
# RESOLUTION = 4000, 3000
# RESOLUTION = 2000, 1500

with dai.Pipeline() as pipeline:
    center = pipeline.create(dai.node.Camera).build(
        boardSocket=dai.CameraBoardSocket.CAM_A,
        sensorFps=10
    )

    rectify = pipeline.create(dai.node.Warp)

    # Identity warp mesh
    p0, p1, p2 = dai.Point2f(0, 0), dai.Point2f(RESOLUTION[0] / 2, 0), dai.Point2f(RESOLUTION[0], 0)
    p3, p4, p5 = dai.Point2f(0, RESOLUTION[1] / 2), dai.Point2f(RESOLUTION[0] / 2,
                                                                RESOLUTION[1] / 2), dai.Point2f(
        RESOLUTION[0], RESOLUTION[1] / 2)
    p6, p7, p8 = dai.Point2f(0, RESOLUTION[1]), dai.Point2f(RESOLUTION[0] / 2,
                                                            RESOLUTION[1]), dai.Point2f(
        *RESOLUTION)

    rectify.setWarpMesh(dai.VectorPoint2f([
        p0, p1, p2,
        p3, p4, p5,
        p6, p7, p8,
    ]), 3, 3)

    rectify.setOutputSize(RESOLUTION)
    rectify.setInterpolation(dai.Interpolation.BILINEAR)

    center.requestOutput(
        size=RESOLUTION,
        type=dai.ImgFrame.Type.GRAY8
    ).link(rectify.inputImage)

    outputQueue = rectify.out.createOutputQueue()

    pipeline.start()
    while pipeline.isRunning():
        img: dai.ImgFrame = outputQueue.get()

        print(img.getWidth(), img.getHeight())
        cv2.imshow("camera", img.getCvFrame())

        if cv2.waitKey(1) == ord("q"):
            break

On the other hand, when setting CAMERA_RESOLUTION = 3840, 2160, the camera provides a couples of images and then fails with

[1794514592] [192.168.137.246] [1784725226.902] [Warp(1)] [info] Input image convert time: 3us
[1794514592] [192.168.137.246] [1784725226.902] [Warp(1)] [info] Running wrap on received image.
[1794514592] [192.168.137.246] [1784725226.910] [Warp(1)] [info] Input wrap time: 7472us
[1794514592] [192.168.137.246] [1784725226.910] [Warp(1)] [info] Image sent out.
[1794514592] [192.168.137.246] [1784725226.910] [Warp(1)] [info] Waiting for image.
[1794514592] [192.168.137.246] [1784725226.929] [XLinkOut(2)] [debug] XLinkOut total took 152.383ms, processing 0ms, getting_frames 33.748ms, sending_frames 118.633ms
3840 2160
[1794514592] [192.168.137.246] [1784725227.002] [Warp(1)] [info] Input image convert time: 4us
[1794514592] [192.168.137.246] [1784725227.002] [Warp(1)] [info] Running wrap on received image.
[1794514592] [192.168.137.246] [1784725227.010] [Warp(1)] [info] Input wrap time: 7507us
[1794514592] [192.168.137.246] [1784725227.010] [Warp(1)] [info] Image sent out.
[1794514592] [192.168.137.246] [1784725227.010] [Warp(1)] [info] Waiting for image.
[1794514592] [192.168.137.246] [1784725227.039] [XLinkOut(2)] [debug] XLinkOut total took 109.595ms, processing 0.001ms, getting_frames 0.084ms, sending_frames 109.509ms
3840 2160
[1794514592] [192.168.137.246] [1784725227.094] [Camera(0)] [error] Resizer encountered an error: DS: Assert (outFrame->data->getData().size() >= minMemSize)
[1794514592] [192.168.137.246] [1784725227.151] [XLinkOut(2)] [debug] XLinkOut total took 111.59ms, processing 0ms, getting_frames 0.01ms, sending_frames 111.58ms
[1794514592] [192.168.137.246] [1784725227.167] [system] [info] Memory Usage - DDR: 2628.24 / 7201.83 MiB
[1794514592] [192.168.137.246] [1784725227.167] [system] [info] Temperatures - Average: 33.90 °C, cpuss 34.60 °C, gpuss 33.20 °C, mdmss 33.70 °C, video 34.90 °C, ddr 33.30 °C, camera 33.70 °C
[1794514592] [192.168.137.246] [1784725227.167] [system] [info] Cpu Usage - Average: 11.42%, [0]: 29.90%, [1]: 6.00%, [2]: 9.00%, [3]: 9.80%, [4]: 8.74%, [5]: 6.86%

Is there a way to operate at full sensor resolution 8000×6000, or at least 4000×3000?

MatteoL

While playing around with the parameters, I discovered that it works whenever the output resolution satisfies (w×128, h×128) , for some w, h positive integers. It seems you have some issues with memory alignment.

SasoTamse

Hi MatteoL - You are right. As a workaround, please try requesting the native 8000 × 6000 sensor output, converting it to GRAY8, and adding horizontal padding so that the frame becomes 8192 × 6000.

Then send the padded frame to the Warp node and crop 96 pixels from each side of the warped output to return to 8000 × 6000. Please also explicitly increase the maximum output frame size for both ImageManip and Warp.

Although this workaround works, the achieved FPS is relatively low because of the very large frame size and processing load.

Based on our testing, you could also try:

4096 × 3000, which works directly with Warp.
8192 × 6000 internally, followed by cropping back to 8000 × 6000.

Out of curiosity, could you also share why you are using the Warp node and what you are trying to achieve with it? This may help us suggest a more suitable or efficient approach.

MatteoL

I use it to rectify the image from the central camera with alpha>0.

Please update the documentation.
