Ribbon Cable

JosephSchramm

Is there a correct way to install the blue tip ribbon cable? Can they be upside down? I installed the camera to the SoM but the Oak Viewer does not see the cameras??? Could I have the ribbon cables in the board socket wrong?

OskarSonc

Hey JosephSchramm - could you provide some more info/pictures(which device you have, which camera)?

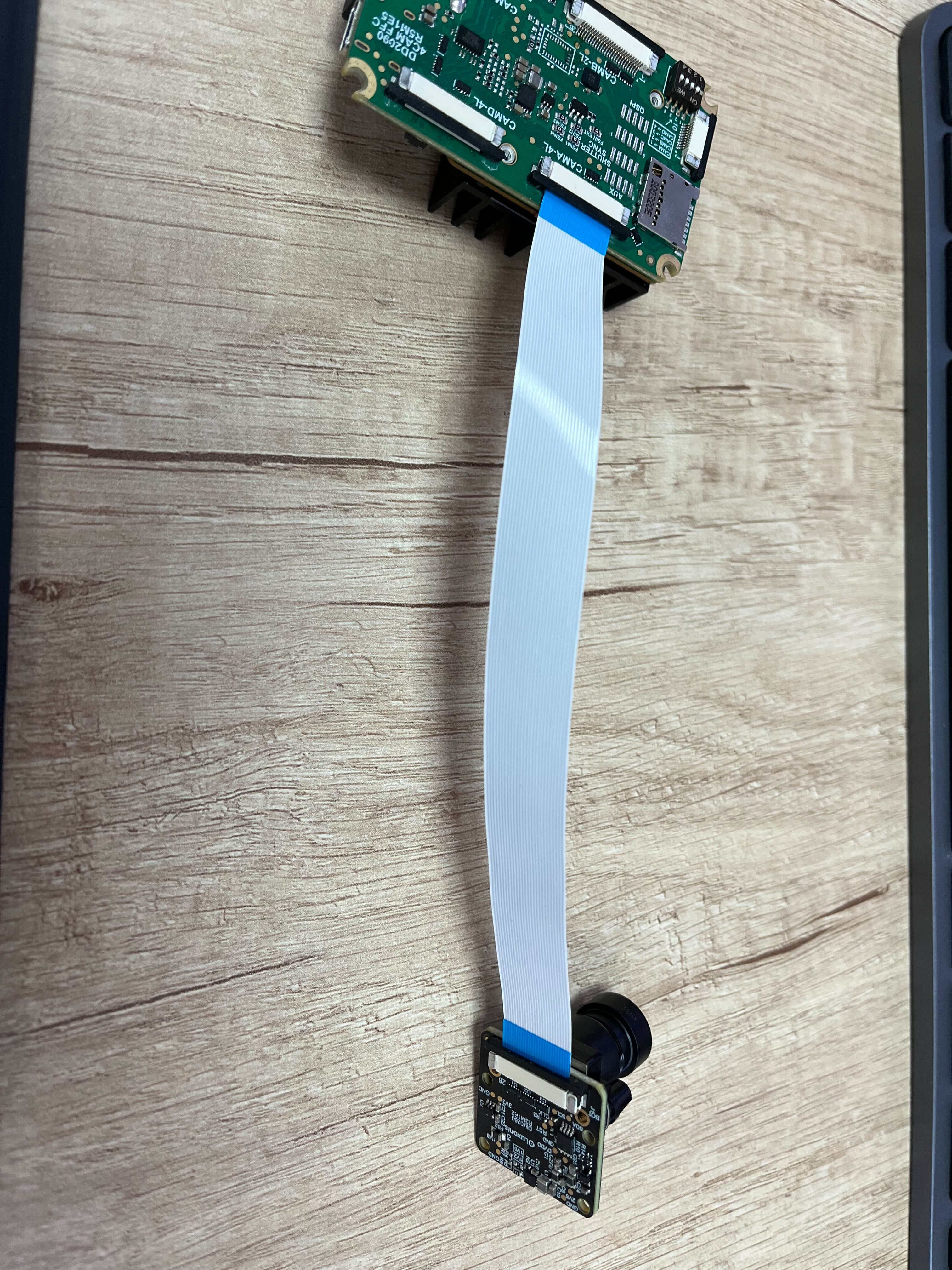

I suppose you have FFC device. Cable for FFC device should be mounted like this:

Orientation is important; Blue part of FFC should be facing away from PCB on both ends.

Also I would suggest running depthai-core/utilities/cam_test.py instead of oak-viewer here is how.

Thanks,
Oskar
