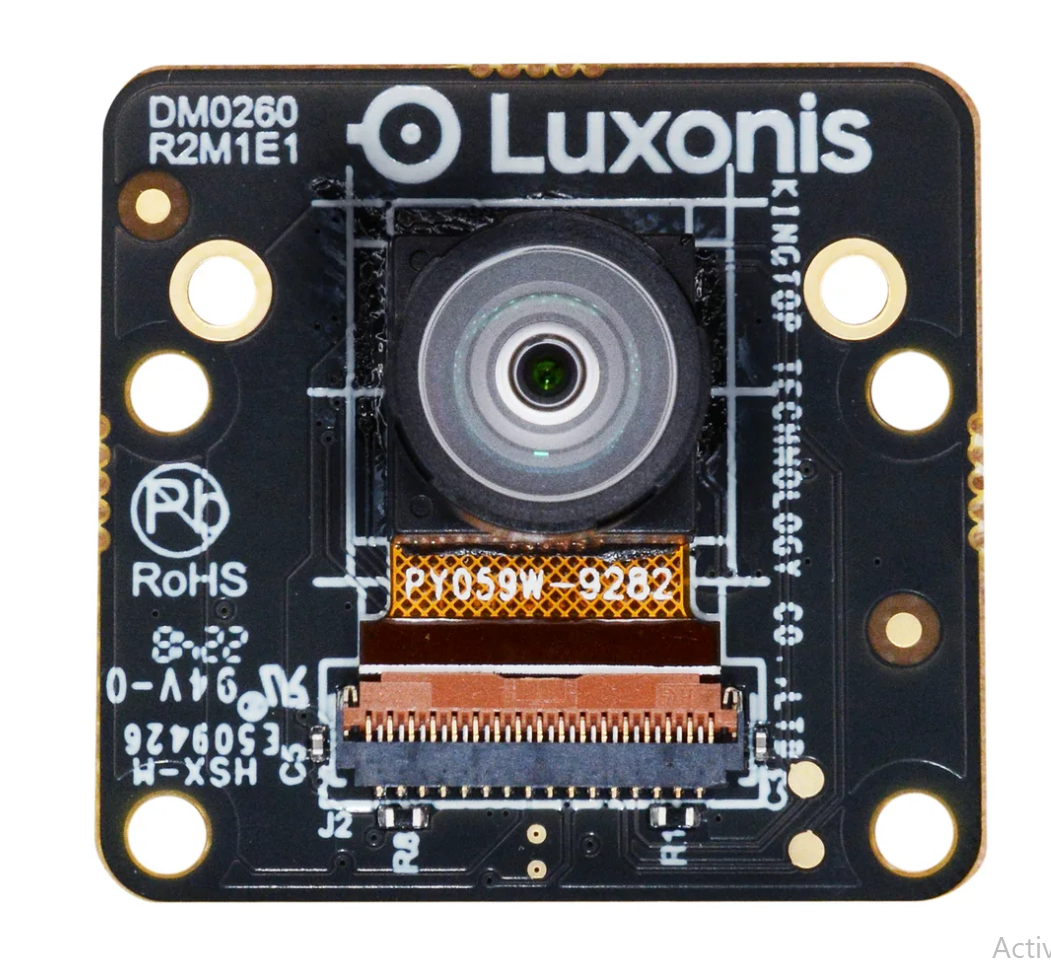

Hi there! I'm reaching out to see if I can get the spec on the location of the entrance pupil on the lens used on the OAK-FFC [OV9282 W camera](https://shop.luxonis.com/products/oak-ffc-ov9282-w?srsltid=AfmBOorGzgS5ygnxujRpdgnqMAeCwk1h2Q3LAkEjWQbMWwnwhVI1yI55). Ideally z-distance from the front edge of the lens to the entrance pupil. [upl-image-preview uuid=6a99da5e-44ce-4ef3-800b-5feea9e04d9f url=https://discuss.luxonis.com/assets/files/2026-01-08/1767857578-919363-image.png alt={TEXT?}] I'm making an enclosure that I'd like to follow the FOV of the camera, but need to know the location of the entrance pupil to do so. Thank you!

Location of Entrance Pupil On OV9282 W Lens

CalebBergquist

Hi there!

I'm reaching out to see if I can get the spec on the location of the entrance pupil on the lens used on the OAK-FFC OV9282 W camera. Ideally z-distance from the front edge of the lens to the entrance pupil.

I'm making an enclosure that I'd like to follow the FOV of the camera, but need to know the location of the entrance pupil to do so.

Thank you!

OskarSonc

Hey CalebBergquist - did you check the Files tab on the product page you shared? There are 3d drawings etc. that maybe could help?

Thanks,
Oskar
