Help with OAK-FFC-4P + 2x AR0234 on ROS2 Jazzy + rtabmap (SLAM)

pepperherman

Hi all,

I’m a bit lost and could use some guidance.

My setup:
Raspberry Pi 5
OAK-FFC-4P baseboard
2x OAK-FFC AR0234 M12 camera modules
ROS2 Jazzy
rtabmap (Jazzy) for SLAM

I’m comfortable using Intel RealSense with ROS2 and rtabmap, but this is my first time working with two separate cameras on an OAK-FFC-4P, and I’m not sure what the correct overall workflow is.

What I’m trying to do:
Use the two AR0234s as a stereo pair
Run the DepthAI ROS driver on Jazzy
Feed depth / stereo data into rtabmap for SLAM

Where I’m stuck:
Do I just use the depthai_ros_driver + depthai-bridge packages on ROS2 Jazzy, or is there something extra needed for FFC setups?

What is the high-level order of steps? For example:
Wire/connect the cameras to specific sockets (e.g. CAM_B/C?)
Run some DepthAI stereo example to confirm both sensors
Do a proper stereo calibration and flash it to EEPROM
Use a particular launch file / config in depthai_ros_driver
Then start rtabmap with some known-good remappings

Are there example configs or launch files specifically for OAK-FFC-4P + AR0234 on ROS2?

Is there any “recommended” doc path for this setup beyond:
The general OAK-FFC-4P page
The calibration guide for FFC / stereo cameras

So far I’ve only found one FFC page and one calibration page, and I’m worried I’m missing the right place in the docs for ROS2 Jazzy + rtabmap usage.

If someone could roughly outline the steps (even at a high level) or point me to the best docs/threads for:
FFC-4P + AR0234 stereo calibration + EEPROM flashing
Using depthai_ros_driver with ROS2 Jazzy
Example of running rtabmap with an OAK stereo pipeline

that would help a lot.
Thanks!

OskarSonc

cc @Luxonis-Adam

Luxonis-Adam

Hi @pepperherman, sorry for the late reply. The setup you are trying to achieve is a bit more involved than setting up a regular OAK camera, but should be achievable either way. Unfortunately we don't have examples/launch files for OAK-FFC devices as they vary more for each user.

Regarding calibration, doing a stereo calibration for the device should be enough for initial version as IIRC RTABMap's ROS implementation doesn't really utilize IMU.
For connecting the cameras themselves I would recommend using the same order as OAK-D lineup - CAM_B for left and CAM_C for right as these are defaults in the driver. You can use STEREO or DEPTH pipeline type to obtain the desired data stream.
You will also need to publish URDF of the camera, you can refer to publish_tf_from_calibration parameter in documentation, in short it should provide left/right transforms out of the box with a proper calibration.

pepperherman

Luxonis-Adam

Luxonis-Adam
Hi Adam!
I’ve set up my rig (Raspberry Pi 5 + OAK-FFC-4P + 2x AR0234) with a rigid 13cm baseline. I followed your advice a but but needed to make a few changes. We are using CAM_B (Right) and CAM_C (Left), but since I’m using a custom mount, I had to be very specific with my calibration configuration.

Here is exactly what I did, and where I am stuck now (specifically regarding significant map artifacts at range).

My Calibration Setup
I ran the standard calibrate.py script with this board definition JSON, effectively defining CAM_C (Left) as being 13cm offset from CAM_B (Right).

python3 calibrate.py -s 2.4 -nx 11 -ny 8 -brd custom_oak_ffc_4p.json

custom_oak_ffc_4p.json:

{
    "board_config": {
        "name": "OAK-FFC-4P",
        "cameras": {
            "CAM_C": {
                "name": "left",
                "type": "color",
                "hfov": 120,
                "extrinsics": {
                    "to_cam": "CAM_B",
                    "specTranslation": { "x": 13, "y": 0, "z": 0 },
                    "rotation": { "r": 0, "p": 0, "y": 0 }
                }
            },
            "CAM_B": {
                "name": "right",
                "type": "color",
                "hfov": 120
            }
        },
        "stereo_config": {
            "left_cam": "CAM_C",
            "right_cam": "CAM_B"
        }
    }
}

I then flashed the resulting calibration to the OAK EEPROM. So that's the 39 images you have to take from the board to get the JSON calibration file.

My Custom ROS2 Bridge
We wrote a custom C++ node instead of using the standard driver. We couldn't or didn't know how we could use the already available ROS OAK Bridge with the 4P FFC.

It loads the calibration blob directly.
It manually computes cv::stereoRectify and sets up ImageManip nodes on the OAK to undistort/rectify the images before they even leave the device.
It publishes exact-sync image_rect messages to ROS2.

#include <chrono>
#include <memory>
#include <string>
#include <vector>
#include <iostream>
#include <thread>
#include <atomic>
#include <mutex>

#include "rclcpp/rclcpp.hpp"
#include "sensor_msgs/msg/image.hpp"
#include "sensor_msgs/msg/camera_info.hpp"
#include "sensor_msgs/msg/imu.hpp"
#include "sensor_msgs/msg/magnetic_field.hpp"
#include <cv_bridge/cv_bridge.hpp>

#include "depthai/depthai.hpp"
#include <opencv2/opencv.hpp>

using namespace std::chrono_literals;

class OakFfcCppNode : public rclcpp::Node {
public:
    OakFfcCppNode() : Node("oak_ffc_cpp_node") {
        // Parameters
        this->declare_parameter("fps", 20);
        this->declare_parameter("width", 640);
        this->declare_parameter("height", 400);
        this->declare_parameter("calib_path", "");
        this->declare_parameter("image_type", "color"); // color or mono

        fps_ = this->get_parameter("fps").as_int();
        width_ = this->get_parameter("width").as_int();
        height_ = this->get_parameter("height").as_int();
        calib_path_ = this->get_parameter("calib_path").as_string();
        image_type_ = this->get_parameter("image_type").as_string();

        // Publishers
        pub_left_ = this->create_publisher<sensor_msgs::msg::Image>("left/image_rect", 10);
        pub_right_ = this->create_publisher<sensor_msgs::msg::Image>("right/image_rect", 10);
        pub_left_info_ = this->create_publisher<sensor_msgs::msg::CameraInfo>("left/camera_info", 10);
        pub_right_info_ = this->create_publisher<sensor_msgs::msg::CameraInfo>("right/camera_info", 10);
        pub_imu_ = this->create_publisher<sensor_msgs::msg::Imu>("imu/data", 10);
        pub_mag_ = this->create_publisher<sensor_msgs::msg::MagneticField>("imu/mag", 10);
    }

    void run() {
        pipeline_ = std::make_unique<dai::Pipeline>();

        dai::CalibrationHandler calibData;
        bool calibLoaded = false;

        if (!calib_path_.empty()) {
            try {
                calibData = dai::CalibrationHandler(calib_path_);
                pipeline_->setCalibrationData(calibData);
                calibLoaded = true;
                RCLCPP_INFO(this->get_logger(), "Loaded calibration from file.");
            } catch (const std::exception& e) {
                RCLCPP_ERROR(this->get_logger(), "Failed to load calibration file: %s", e.what());
            }
        }

        if (!calibLoaded) {
             RCLCPP_FATAL(this->get_logger(), "Calibration not loaded! Node will exit as SLAM requires rectification.");
             throw std::runtime_error("Calibration missing");
        }

        // --- Pipeline Construction ---
        auto camLeft = pipeline_->create<dai::node::ColorCamera>();
        auto camRight = pipeline_->create<dai::node::ColorCamera>();

        camLeft->setBoardSocket(dai::CameraBoardSocket::CAM_C);
        camRight->setBoardSocket(dai::CameraBoardSocket::CAM_B);
        camLeft->setFps(fps_);
        camRight->setFps(fps_);
        camLeft->setResolution(dai::ColorCameraProperties::SensorResolution::THE_1200_P);
        camRight->setResolution(dai::ColorCameraProperties::SensorResolution::THE_1200_P);
        camLeft->setIspScale(1, 3);
        camRight->setIspScale(1, 3);

        // Limit exposure to 33ms to prevent motion blur during movement
        camLeft->initialControl.setAutoExposureLimit(33000);
        camRight->initialControl.setAutoExposureLimit(33000);

        auto manipLeft = pipeline_->create<dai::node::ImageManip>();
        auto manipRight = pipeline_->create<dai::node::ImageManip>();

        if (image_type_ == "mono") {
            manipLeft->initialConfig.setFrameType(dai::ImgFrame::Type::GRAY8);
            manipRight->initialConfig.setFrameType(dai::ImgFrame::Type::GRAY8);
            manipLeft->setMaxOutputFrameSize(width_ * height_);
            manipRight->setMaxOutputFrameSize(width_ * height_);
        } else {
            manipLeft->initialConfig.setFrameType(dai::ImgFrame::Type::BGR888i);
            manipRight->initialConfig.setFrameType(dai::ImgFrame::Type::BGR888i);
            manipLeft->setMaxOutputFrameSize(width_ * height_ * 3);
            manipRight->setMaxOutputFrameSize(width_ * height_ * 3);
        }

        // Generate Mesh
        if (calibLoaded) {
            std::vector<std::vector<float>> M1_vec = calibData.getCameraIntrinsics(dai::CameraBoardSocket::CAM_C, width_, height_);
            std::vector<float> d1_vec = calibData.getDistortionCoefficients(dai::CameraBoardSocket::CAM_C);
            std::vector<std::vector<float>> M2_vec = calibData.getCameraIntrinsics(dai::CameraBoardSocket::CAM_B, width_, height_);
            std::vector<float> d2_vec = calibData.getDistortionCoefficients(dai::CameraBoardSocket::CAM_B);

            std::vector<std::vector<float>> extrinsics = calibData.getCameraExtrinsics(dai::CameraBoardSocket::CAM_C, dai::CameraBoardSocket::CAM_B);

            // Convert to OpenCV
            cv::Mat M1(3, 3, CV_64F);
            for(int i=0; i<3; i++) for(int j=0; j<3; j++) M1.at<double>(i,j) = static_cast<double>(M1_vec[i][j]);

            cv::Mat d1(1, d1_vec.size(), CV_64F);
            for(size_t i=0; i<d1_vec.size(); i++) d1.at<double>(0,i) = static_cast<double>(d1_vec[i]);

            cv::Mat M2(3, 3, CV_64F);
            for(int i=0; i<3; i++) for(int j=0; j<3; j++) M2.at<double>(i,j) = static_cast<double>(M2_vec[i][j]);

            cv::Mat d2(1, d2_vec.size(), CV_64F);
            for(size_t i=0; i<d2_vec.size(); i++) d2.at<double>(0,i) = static_cast<double>(d2_vec[i]);

            cv::Mat R(3, 3, CV_64F);
            cv::Mat T(3, 1, CV_64F);

            for(int i=0; i<3; i++) {
                for(int j=0; j<3; j++) R.at<double>(i,j) = static_cast<double>(extrinsics[i][j]);
                T.at<double>(i,0) = static_cast<double>(extrinsics[i][3]);
            }

            // Ensure T[0] is negative (Left -> Right means X_right = X_left - B)
            if (T.at<double>(0,0) > 0) {
                RCLCPP_WARN(this->get_logger(), "Baseline T[0] is positive (%f). Inverting extrinsics to ensure Left->Right convention.", T.at<double>(0,0));
                cv::Mat R_inv = R.t();
                cv::Mat T_inv = -R_inv * T;
                R = R_inv;
                T = T_inv;
                RCLCPP_INFO(this->get_logger(), "New Baseline T: %f %f %f", T.at<double>(0,0), T.at<double>(1,0), T.at<double>(2,0));
            }

            cv::Mat R1, R2, P1, P2, Q;
            cv::stereoRectify(M1, d1, M2, d2, cv::Size(width_, height_), R, T, R1, R2, P1, P2, Q, cv::CALIB_ZERO_DISPARITY, 0);

            RCLCPP_INFO(this->get_logger(), "Rectification computed.");
            RCLCPP_INFO(this->get_logger(), "P1: %f %f %f %f", P1.at<double>(0,0), P1.at<double>(0,1), P1.at<double>(0,2), P1.at<double>(0,3));
            RCLCPP_INFO(this->get_logger(), "P2: %f %f %f %f", P2.at<double>(0,0), P2.at<double>(0,1), P2.at<double>(0,2), P2.at<double>(0,3));

            P1.convertTo(P1_, CV_32F);
            P2.convertTo(P2_, CV_32F);

            cv::Mat map1_x, map1_y, map2_x, map2_y;
            cv::initUndistortRectifyMap(M1, d1, R1, P1, cv::Size(width_, height_), CV_32FC1, map1_x, map1_y);
            cv::initUndistortRectifyMap(M2, d2, R2, P2, cv::Size(width_, height_), CV_32FC1, map2_x, map2_y);

            auto [meshLeft, mwLeft, mhLeft] = getMesh(map1_x, map1_y);
            auto [meshRight, mwRight, mhRight] = getMesh(map2_x, map2_y);

            RCLCPP_INFO(this->get_logger(), "Mesh Left: %d points, %dx%d", (int)meshLeft.size(), mwLeft, mhLeft);
            RCLCPP_INFO(this->get_logger(), "Mesh Right: %d points, %dx%d", (int)meshRight.size(), mwRight, mhRight);

            manipLeft->setWarpMesh(meshLeft, mwLeft, mhLeft);
            manipRight->setWarpMesh(meshRight, mwRight, mhRight);
        }

        camLeft->isp.link(manipLeft->inputImage);
        camRight->isp.link(manipRight->inputImage);

        // Sync
        auto sync = pipeline_->create<dai::node::Sync>();
        sync->setSyncThreshold(std::chrono::milliseconds(10));

        manipLeft->out.link(sync->inputs["left"]);
        manipRight->out.link(sync->inputs["right"]);

        auto xoutSync = pipeline_->create<dai::node::XLinkOut>();
        xoutSync->setStreamName("sync");
        sync->out.link(xoutSync->input);

        auto imu = pipeline_->create<dai::node::IMU>();
        imu->enableIMUSensor({dai::IMUSensor::ACCELEROMETER_RAW, dai::IMUSensor::GYROSCOPE_RAW, dai::IMUSensor::MAGNETOMETER_CALIBRATED}, 200);
        imu->setBatchReportThreshold(1);
        imu->setMaxBatchReports(10);

        auto xoutImu = pipeline_->create<dai::node::XLinkOut>();
        xoutImu->setStreamName("imu");
        imu->out.link(xoutImu->input);

        // Start Device
        device_ = std::make_unique<dai::Device>(*pipeline_);

        // Use Callbacks for lower latency
        q_sync_ = device_->getOutputQueue("sync", 4, false);
        q_imu_ = device_->getOutputQueue("imu", 50, false);

        q_sync_->addCallback(std::bind(&OakFfcCppNode::syncCallback, this, std::placeholders::_1));
        q_imu_->addCallback(std::bind(&OakFfcCppNode::imuCallback, this, std::placeholders::_1));

        RCLCPP_INFO(this->get_logger(), "OAK-FFC C++ Bridge Started with Callbacks");

        // Main Loop just to keep node alive
        rclcpp::spin(this->get_node_base_interface());
    }

private:
    int fps_, width_, height_;
    std::string calib_path_, image_type_;

    rclcpp::Publisher<sensor_msgs::msg::Image>::SharedPtr pub_left_, pub_right_;
    rclcpp::Publisher<sensor_msgs::msg::CameraInfo>::SharedPtr pub_left_info_, pub_right_info_;
    rclcpp::Publisher<sensor_msgs::msg::Imu>::SharedPtr pub_imu_;
    rclcpp::Publisher<sensor_msgs::msg::MagneticField>::SharedPtr pub_mag_;

    std::unique_ptr<dai::Device> device_;
    std::unique_ptr<dai::Pipeline> pipeline_;
    std::shared_ptr<dai::DataOutputQueue> q_sync_, q_imu_;

    sensor_msgs::msg::CameraInfo left_info_, right_info_;

    // Calibration matrices
    cv::Mat P1_, P2_, R1_, R2_;

    struct TimeSync {
        rclcpp::Time start_ros;
        std::chrono::time_point<std::chrono::steady_clock, std::chrono::steady_clock::duration> start_device;
        bool initialized = false;
        std::mutex mutex;
    };
    TimeSync global_sync_;

    void imuCallback(std::shared_ptr<dai::ADatatype> data) {
        if (auto imuData = std::dynamic_pointer_cast<dai::IMUData>(data)) {
            for (const auto& packet : imuData->packets) {
                // IMU Message (Accel + Gyro)
                sensor_msgs::msg::Imu msg;
                auto ts = packet.acceleroMeter.timestamp.get();

                // Get ROS time
                rclcpp::Time ros_time = this->getRosTime(ts, global_sync_);
                msg.header.stamp = ros_time;
                msg.header.frame_id = "oak_imu_frame";

                // Rotation (-90 deg Z fix)
                msg.linear_acceleration.x = packet.acceleroMeter.y;
                msg.linear_acceleration.y = -packet.acceleroMeter.x;
                msg.linear_acceleration.z = packet.acceleroMeter.z;

                msg.angular_velocity.x = packet.gyroscope.y;
                msg.angular_velocity.y = -packet.gyroscope.x;
                msg.angular_velocity.z = packet.gyroscope.z;

                pub_imu_->publish(msg);

                // Mag Message
                sensor_msgs::msg::MagneticField mag_msg;
                mag_msg.header.stamp = ros_time;
                mag_msg.header.frame_id = "oak_imu_frame";

                // Convert uT to Tesla (1 uT = 1e-6 T)
                const float uT_to_T = 1e-6;

                mag_msg.magnetic_field.x = packet.magneticField.x * uT_to_T;
                mag_msg.magnetic_field.y = packet.magneticField.y * uT_to_T;
                mag_msg.magnetic_field.z = packet.magneticField.z * uT_to_T;

                pub_mag_->publish(mag_msg);
            }
        }
    }

    void syncCallback(std::shared_ptr<dai::ADatatype> data) {
         if (auto syncData = std::dynamic_pointer_cast<dai::MessageGroup>(data)) {
            auto inLeft = syncData->get<dai::ImgFrame>("left");
            auto inRight = syncData->get<dai::ImgFrame>("right");

            if (inLeft && inRight) {
                auto ts = inLeft->getTimestamp();
                auto timestamp = this->getRosTime(ts, global_sync_);

                std::string encoding = (image_type_ == "color") ? "bgr8" : "mono8";

                // Process Left
                cv::Mat frameLeft;
                if (inLeft->getType() == dai::ImgFrame::Type::GRAY8) {
                    frameLeft = cv::Mat(inLeft->getHeight(), inLeft->getWidth(), CV_8UC1, inLeft->getData().data());
                } else {
                    frameLeft = cv::Mat(inLeft->getHeight(), inLeft->getWidth(), CV_8UC3, inLeft->getData().data());
                }

                auto msgLeft = cv_bridge::CvImage(std_msgs::msg::Header(), encoding, frameLeft).toImageMsg();
                msgLeft->header.stamp = timestamp;
                msgLeft->header.frame_id = "oak_left_frame";
                pub_left_->publish(*msgLeft);

                auto infoLeft = getCameraInfo(dai::CameraBoardSocket::CAM_C, timestamp);
                pub_left_info_->publish(infoLeft);

                // Process Right
                cv::Mat frameRight;
                if (inRight->getType() == dai::ImgFrame::Type::GRAY8) {
                    frameRight = cv::Mat(inRight->getHeight(), inRight->getWidth(), CV_8UC1, inRight->getData().data());
                } else {
                    frameRight = cv::Mat(inRight->getHeight(), inRight->getWidth(), CV_8UC3, inRight->getData().data());
                }

                auto msgRight = cv_bridge::CvImage(std_msgs::msg::Header(), encoding, frameRight).toImageMsg();
                msgRight->header.stamp = timestamp;
                msgRight->header.frame_id = "oak_right_frame";
                pub_right_->publish(*msgRight);

                auto infoRight = getCameraInfo(dai::CameraBoardSocket::CAM_B, timestamp);
                pub_right_info_->publish(infoRight);
            }
         }
    }

    // Helper to generate mesh for rectification
    std::tuple<std::vector<dai::Point2f>, int, int> getMesh(const cv::Mat& mapX, const cv::Mat& mapY) {
        std::vector<dai::Point2f> mesh;
        int meshCellSize = 16;
        int width = mapX.cols;
        int height = mapX.rows;

        for (int y = 0; y <= height; y++) {
            if (y % meshCellSize == 0) {
                for (int x = 0; x < width; x++) {
                    if (x % meshCellSize == 0) {
                        float mx, my;
                        if (y == height) {
                            mx = mapX.at<float>(y - 1, x);
                            my = mapY.at<float>(y - 1, x);
                        } else {
                            mx = mapX.at<float>(y, x);
                            my = mapY.at<float>(y, x);
                        }
                        mesh.push_back({mx, my});
                    }
                }
                if ((width % meshCellSize) % 2 != 0) mesh.push_back({0.0f, 0.0f});
            }
        }
        int meshWidth = (width / meshCellSize);
        if ((width % meshCellSize) % 2 != 0) meshWidth++;
        int meshHeight = (height / meshCellSize) + 1;
        return {mesh, meshWidth, meshHeight};
    }

    rclcpp::Time getRosTime(std::chrono::time_point<std::chrono::steady_clock, std::chrono::steady_clock::duration> t, TimeSync& sync) {
        std::lock_guard<std::mutex> lock(sync.mutex);
        if (!sync.initialized) {
            sync.start_ros = this->now();
            sync.start_device = t;
            sync.initialized = true;
            RCLCPP_INFO(this->get_logger(), "TimeSync initialized. ROS: %f", sync.start_ros.seconds());
        }
        auto diff = t - sync.start_device;
        int64_t ns = std::chrono::duration_cast<std::chrono::nanoseconds>(diff).count();
        return sync.start_ros + rclcpp::Duration::from_nanoseconds(ns);
    }

    sensor_msgs::msg::CameraInfo getCameraInfo(dai::CameraBoardSocket socket, rclcpp::Time stamp) {
        sensor_msgs::msg::CameraInfo info;
        info.header.stamp = stamp;
        info.header.frame_id = (socket == dai::CameraBoardSocket::CAM_C) ? "oak_left_frame" : "oak_right_frame";
        info.width = width_;
        info.height = height_;
        info.distortion_model = "plumb_bob";
        info.d = {0,0,0,0,0};
        info.r = {1,0,0,0,1,0,0,0,1};

        cv::Mat P = (socket == dai::CameraBoardSocket::CAM_C) ? P1_ : P2_;
        if (!P.empty()) {
            for(int i=0; i<12; i++) info.p[i] = P.at<float>(i/4, i%4);
            float tx = info.p[3];
            info.p[3] = tx / 100.0;
            for(int i=0; i<3; i++) for(int j=0; j<3; j++) info.k[i*3+j] = P.at<float>(i,j);
        }
        return info;
    }
};

int main(int argc, char** argv) {
    rclcpp::init(argc, argv);
    try {
        auto node = std::make_shared<OakFfcCppNode>();
        node->run();
    } catch (const std::exception& e) {
         std::cerr << "Node failed: " << e.what() << std::endl;
    }
    rclcpp::shutdown();
    return 0;
}

My RTAB-Map Launch
I feed these rectified images into RTAB-Map on ROS2 Jazzy.

import os
from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, IncludeLaunchDescription
from launch.launch_description_sources import PythonLaunchDescriptionSource
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import Node

def generate_launch_description():

    # Arguments
    use_sim_time = LaunchConfiguration('use_sim_time', default='false')

    # Find calibration file
    try:
        pkg_share_rtabmap = get_package_share_directory('oak_ffc_rtabmap')
        calib_path = os.path.join(pkg_share_rtabmap, 'config', 'calibration.json')
    except Exception:
        calib_path = ""

    # OAK-FFC C++ Bridge Node
    oak_bridge_node = Node(
        package='oak_ffc_cpp',
        executable='oak_bridge_cpp',
        name='oak_bridge',
        output='screen',
        parameters=[{
            'fps': 30,
            'width': 640,
            'height': 400,
            'image_type': 'mono', # 'color' or 'mono'
            'calib_path': calib_path
        }]
    )

    # IMU Filter Madgwick (Main - 9 Axis with Mag)
    imu_filter_node = Node(
        package='imu_filter_madgwick',
        executable='imu_filter_madgwick_node',
        name='imu_filter',
        output='screen',
        parameters=[{
            'use_mag': True,
            'publish_tf': False,
            'world_frame': 'enu',
            'fixed_frame': 'base_link',
            'gain': 0.1
        }],
        remappings=[
            ('/imu/data_raw', '/imu/data'),
            ('/imu/data', '/imu/data_filtered'),
            ('/imu/mag', '/imu/mag')
        ]
    )

    tf_base_to_imu = Node(
        package='tf2_ros',
        executable='static_transform_publisher',
        name='base_to_imu',
        arguments=['--x', '0', '--y', '0', '--z', '0',
                   '--yaw', '0', '--pitch', '0', '--roll', '0',
                   '--frame-id', 'base_link', '--child-frame-id', 'oak_imu_frame']
    )

    # Static TF: base_link -> oak_left_frame
    tf_base_to_left = Node(
        package='tf2_ros',
        executable='static_transform_publisher',
        name='base_to_left',
        arguments=['--x', '0', '--y', '0.0375', '--z', '0',
                   '--yaw', '-1.5707', '--pitch', '0', '--roll', '-1.5707',
                   '--frame-id', 'base_link', '--child-frame-id', 'oak_left_frame']
    )

    # RTAB-Map Arguments
    rtabmap_parameters = [
        '--delete_db_on_start',
        '--Rtabmap/DetectionRate 8.0',
    ]

    rtabmap_args_str = ' '.join(rtabmap_parameters)

    rtabmap_launch = IncludeLaunchDescription(
        PythonLaunchDescriptionSource([
            os.path.join(get_package_share_directory('rtabmap_launch'), 'launch', 'rtabmap.launch.py')
        ]),
        launch_arguments={
            'rtabmap_args': rtabmap_args_str,
            'stereo': 'true',
            'frame_id': 'base_link',
            'subscribe_depth': 'false',
            'subscribe_rgb': 'false',
            'subscribe_scan': 'false',
            'approx_sync': 'true',
            'wait_for_transform': '0.2',

            # Topic Remappings
            'left_image_topic': '/left/image_rect',
            'right_image_topic': '/right/image_rect',
            'left_camera_info_topic': '/left/camera_info',
            'right_camera_info_topic': '/right/camera_info',
            'imu_topic': '/imu/data_filtered',
            'wait_imu_to_init': 'true',
            'qos': '1'
        }.items()
    )

    # Path Predictor (Visualizes velocity vector)
    path_predictor_node = Node(
        package='oak_ffc_cpp',
        executable='predict_path.py',
        name='path_predictor',
        output='screen'
    )

    return LaunchDescription([
        oak_bridge_node,
        imu_filter_node,
        tf_base_to_imu,
        tf_base_to_left,
        rtabmap_launch,
        path_predictor_node
    ])

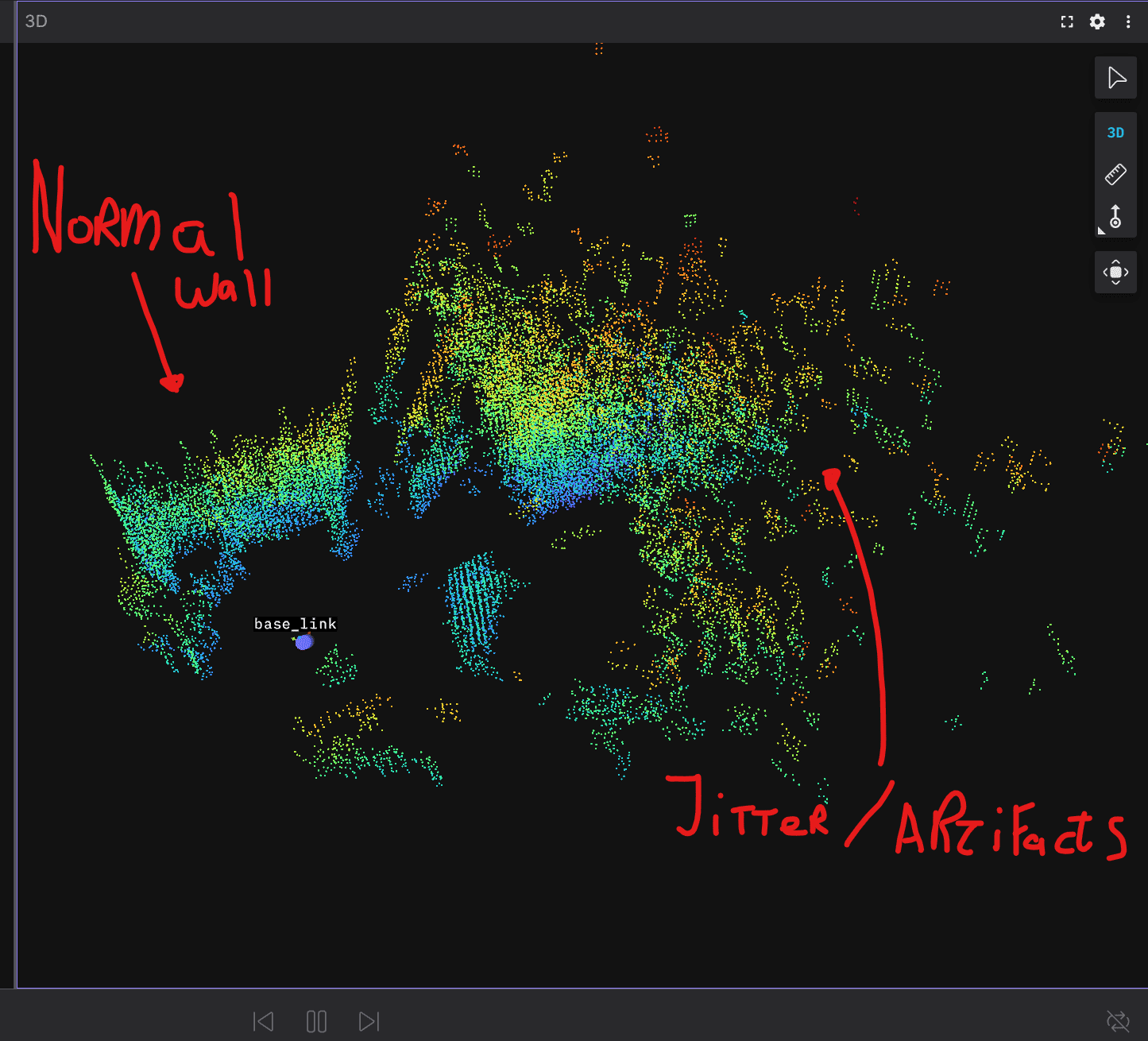

The Problem: Double Walls / Ghosting
So, RTAB-Map works! It builds a map and creates a valid 3D cloud. The Bad News: I am seeing severe "double wall" artefacts for objects further than ₃ meters away.
Close objects look fine. Distant walls or pillars appear as duplicate surfaces offset by maybe 20-50cm in the map.
I moved to this setup from an Intel RealSense D456 specifically because I needed a wider baseline (13cm+ vs 9.5cm) for better long-range accuracy. The D456 mapped these walls perfectly with the same rtabmap launch file (just different topics and driver). With my custom OAK-FFC setup, the wider baseline seems to be causing issues rather than solving them.

My Questions:
Is my calibration approach correct? Does calibrate.py / stereoRectify handle these wide-angle M12 lenses the standard M12 lens that comes with the AR0234 (Fisheye model vs Pinhole) correctly at this baseline?

Why the ghosting? Is this a symptom of a slight extrinsic calibration error (rotation) being amplified by the wider baseline?

Synchronisation: I have approx_sync: true in RTAB-Map, but my bridge enforces heavy sync. Should I force approx_sync: false to prevent the visual odometry from drifting due to jitter?

Any advice on solving these long-range artefacts would be massively appreciated. I feel like I'm 95% there, but this last geometric error is killing the map quality. Oh and also im using version 2.30.0 of DepthAI I understood that that version is better compatible with the 4P FFC? Or can I use something like
introlab/rtabmap_rosblob/ros2/rtabmap_examples/launch/depthai.launch.py
and
luxonis/depthai-rosblob/jazzy/depthai_examples/launch/stereo_inertial_node.launch.py ? Or is that not possible with the 4P FFC?

Thank you!

The OAK FFC:

The D456:

Luxonis-Adam

Hi,

Is my calibration approach correct? Does calibrate.py / stereoRectify handle these wide-angle M12 lenses the standard M12 lens that comes with the AR0234 (Fisheye model vs Pinhole) correctly at this baseline?

For AR0234 we recommend using perspective_TLTED model as in here
Fisheye model could cause issues with OpenCV functions

Why the ghosting? Is this a symptom of a slight extrinsic calibration error (rotation) being amplified by the wider baseline?

I would start with looking at the resulting depth image that you obtain after calibration, if it is correct the depth image shouldn't have many artifacts. Then if that seems to work I would investigate TF transforms.

Synchronisation: I have approx_sync: true in RTAB-Map, but my bridge enforces heavy sync. Should I force approx_sync: false to prevent the visual odometry from drifting due to jitter?

I would say it shouldn't matter as the syncing mechanism is looking at near timestamps, but feel free to disable it.

Oh and also im using version 2.30.0 of DepthAI I understood that that version is better compatible with the 4P FFC? Or can I use something like

These examples are targeted towards regular OAK-D lineup, but could work with some changes in the driver itself.
On a side note, kilted release utilizes DepthAI V3, which includes several improvements, one of which is VIO integration (and internal RTABMap integration as well) which also have been targeted towards OAK-D lineup, but with some additional work could probably work in your case.
Here you can find some examples, note that this is a branch that will soon be merged to develop.
VIO integration itself is also available in ROS Kilted, RTABMap unfortunately not for now. Please also take into account that these are in experimental phase.

API is generally also very much simplified and it should make it easier to obtain proper calibration values from each frame.
