Color Space / Channel Misalignment After Enabling `enableUndistortion=True`

MulongDeng

It appears that enabling enableUndistortion=True is causing color space or channel misalignment in the output image.

During testing, I observed that after undistortion, the color pixel values remain positioned as if no distortion correction had been applied. This results in visible color fringing or chromatic misregistration — essentially, the red, green, and blue channels seem misaligned relative to the geometrically corrected image.

Below is the test code I used:

#!/usr/bin/env python3
from datetime import datetime

import cv2
import depthai as dai

# Create pipeline
with dai.Pipeline() as pipeline:
    # Define source and output
    cam = pipeline.create(dai.node.Camera).build(dai.CameraBoardSocket.CAM_A)
    distortedQueue = cam.requestOutput((1920,1080), resizeMode=dai.ImgResizeMode.STRETCH, enableUndistortion=False).createOutputQueue()
    undistortedQueue = cam.requestOutput((1920,1080), resizeMode=dai.ImgResizeMode.STRETCH, enableUndistortion=True).createOutputQueue()


    # Connect to device and start pipeline
    pipeline.start()
    while pipeline.isRunning():
        distortedIn = distortedQueue.get()
        assert isinstance(distortedIn, dai.ImgFrame)
        distorted_frame = distortedIn.getCvFrame()
        cv2.imshow("distorted", distorted_frame)

        undistortedIn = undistortedQueue.get()
        assert isinstance(undistortedIn, dai.ImgFrame)
        undistorted_frame = undistortedIn.getCvFrame()
        cv2.imshow("undistorted", undistorted_frame)

        key = cv2.waitKey(1) & 0xFF
        if key == ord("q"):
            break
        if key == ord("s"):
            filename = f"cam_a_{datetime.now():%Y%m%d_%H%M%S}"
            cv2.imwrite(f"{filename}_distorted.png", distorted_frame, [cv2.IMWRITE_PNG_COMPRESSION, 0])
            cv2.imwrite(f"{filename}_undistorted.png", undistorted_frame, [cv2.IMWRITE_PNG_COMPRESSION, 0])

For reference, here are the before/after comparison images:

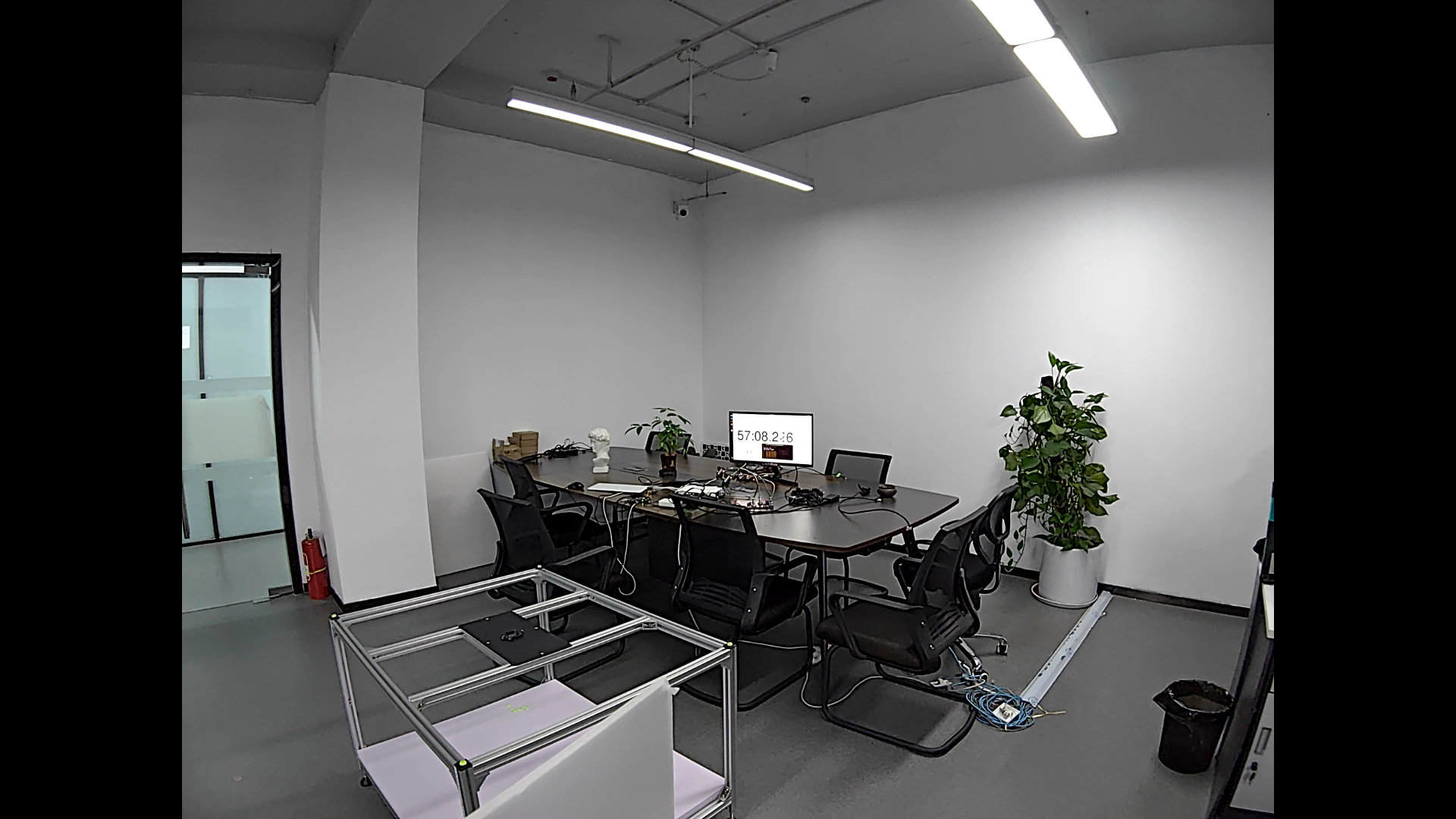

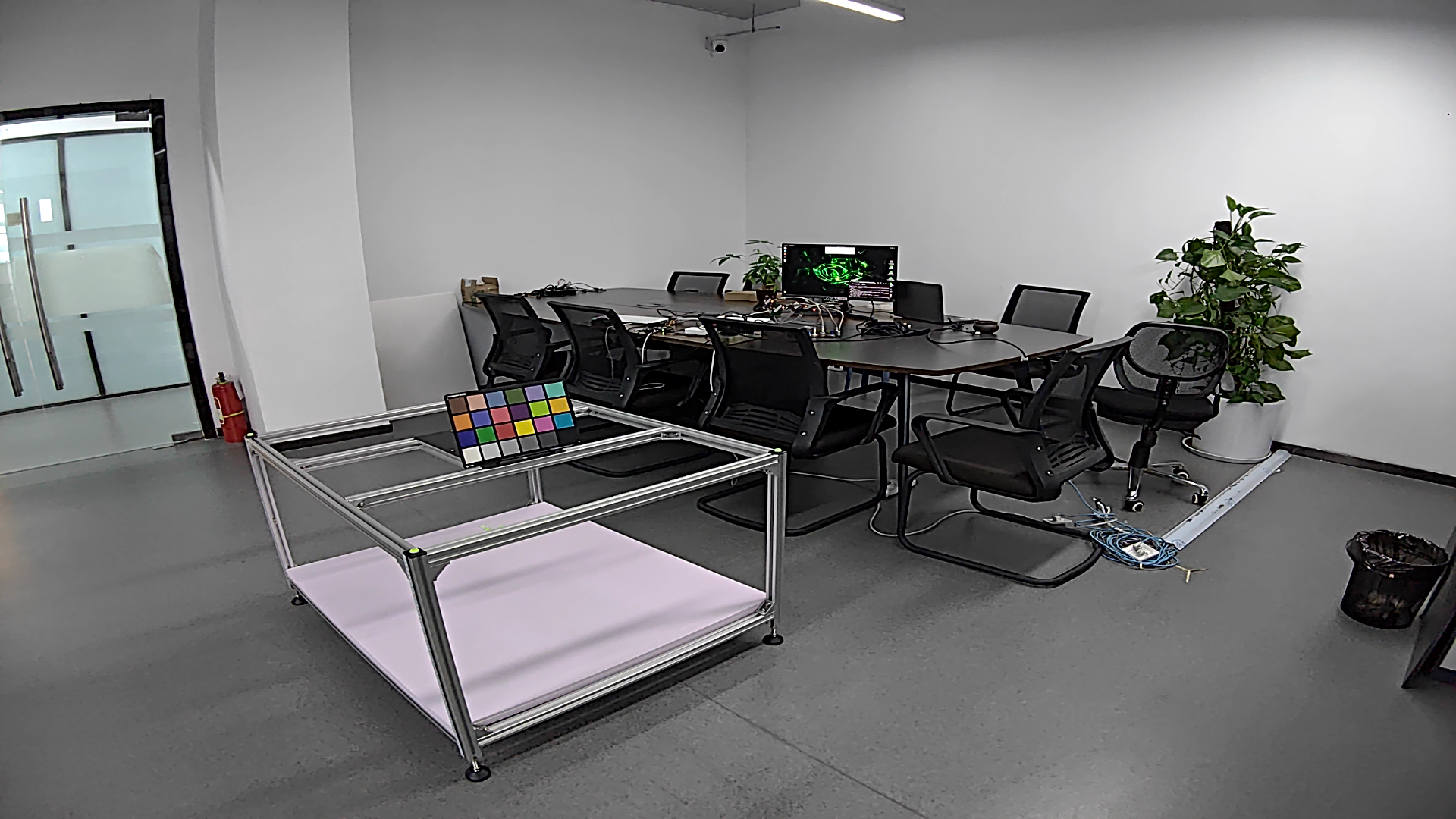

Original (without undistortion):

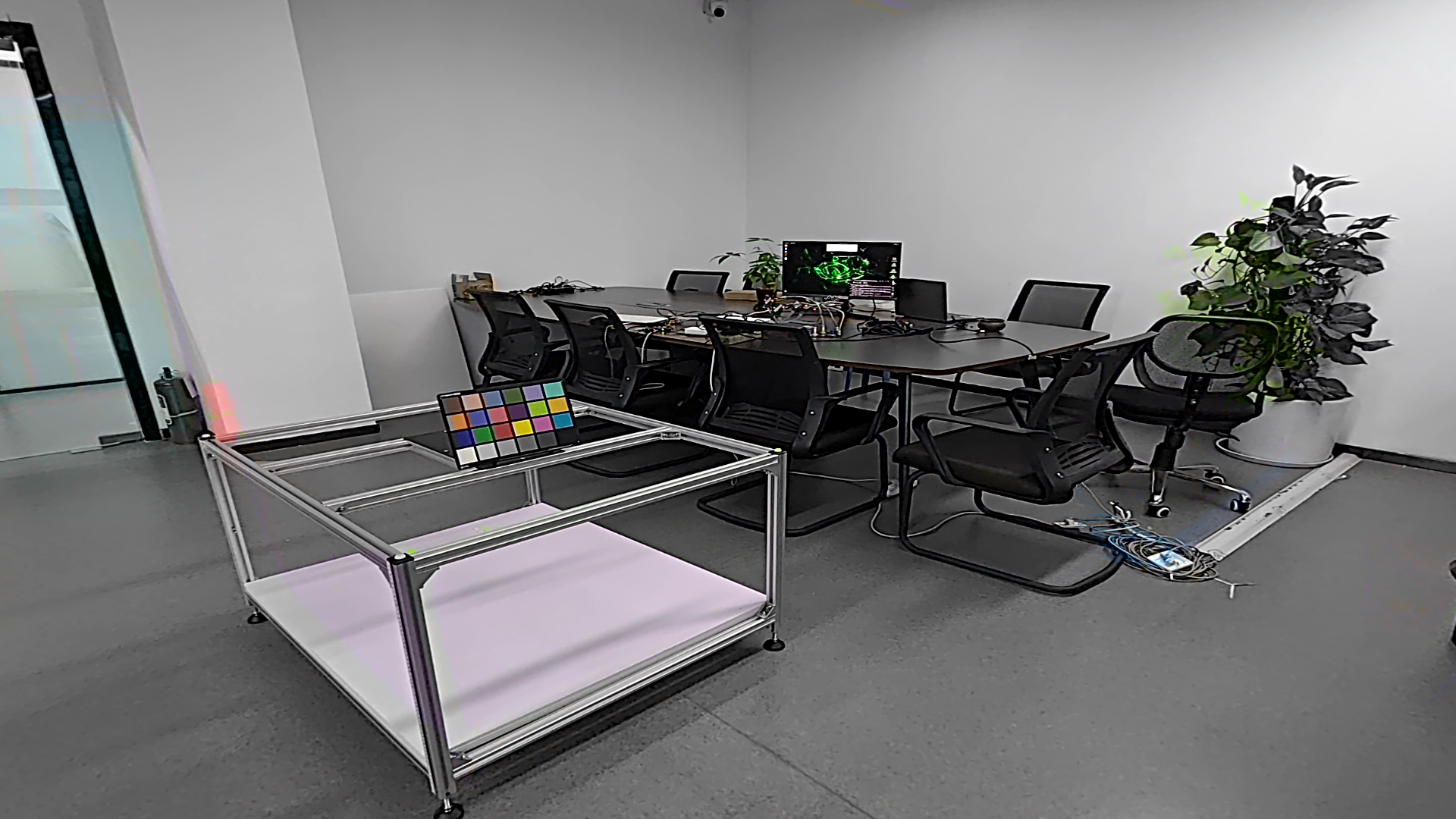

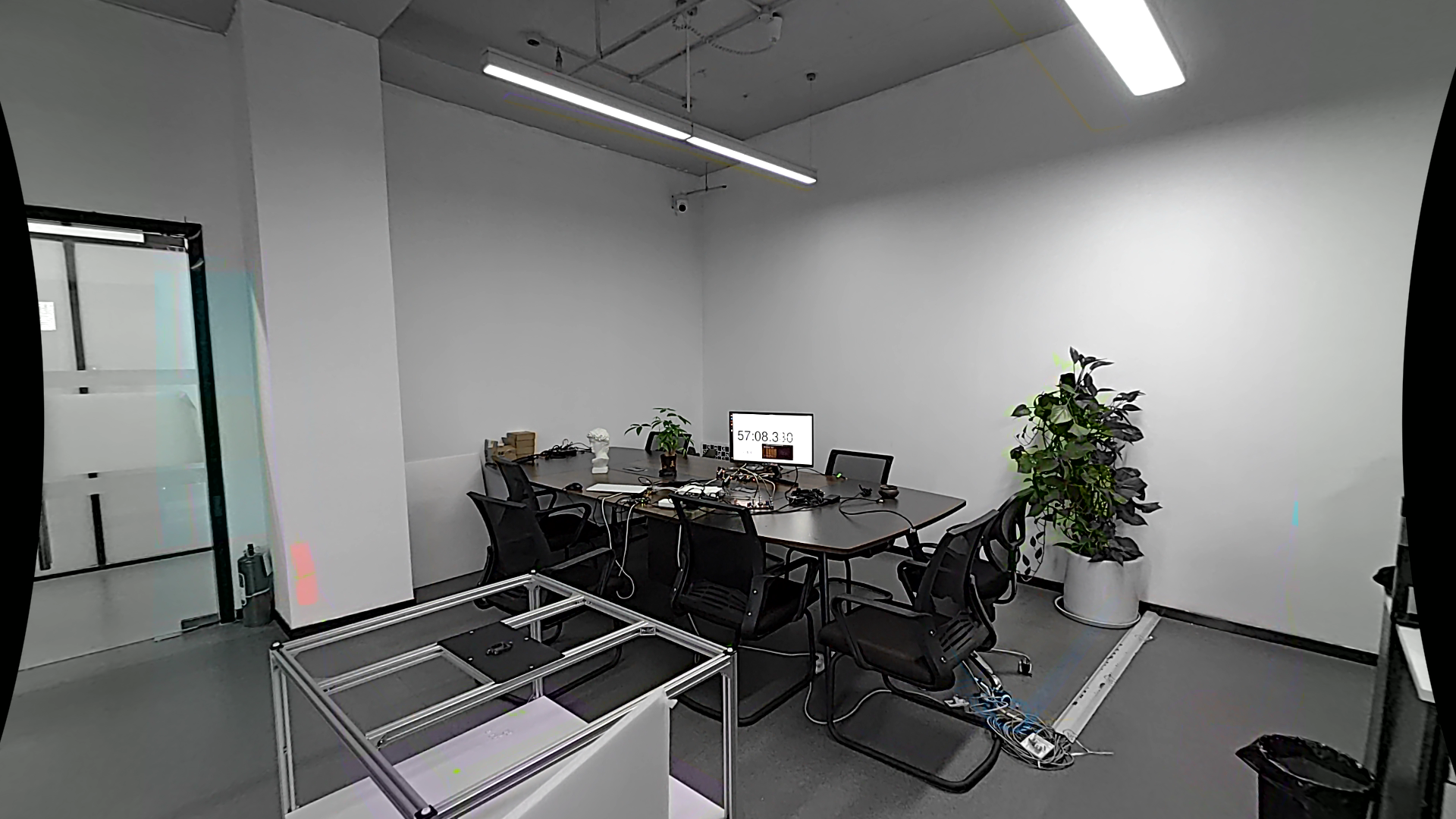

After undistortion (`enableUndistortion=True`):

Has anyone else encountered this issue? Any suggestions for debugging or workarounds would be greatly appreciated.

Device: OAK4-D R7
DepthAI: v3.0.0
Luxonis OS: RVC4 1.18.3 (debug)

OskarSonc

Hey @MulongDeng

I ran your script on the OAK4-D and couldn’t reproduce the colour fringing. One thing that stands out in your screenshots is the much heavier crop on the undistorted view, which usually points to a different undistortion map (calibration/ISP mode), not the API flag itself.

Could you change ImgResizeMode.LETTERBOX in your code and post output?

Also could you run the calibration dump and post the output:
https://docs.luxonis.com/software-v3/depthai/examples/calibration/calibration_dump/

Thanks,
Oskar

MulongDeng

OskarSonc

I tried using ImgResizeMode.LETTERBOX, but it doesn’t seem to behave any differently from ImgResizeMode.STRETCH.

Here’s the output:

And here’s the calibration:
