OAK and OAK4 PoE Powering

RyanLee

Hi,

We would like to install OAK and OAK4 PoE model on the Tractor. So we need to get the power from battery from the tractor. Also the battery output is only supported with 12V and 24V. In this case, How we can provide its power safely??

I found one option from M8 connector. is it working? and any other option we can do for powering you PoE models( OAK and OAK4 both) ??

Best regards,
Ryan.

jakaskerl

RyanLee

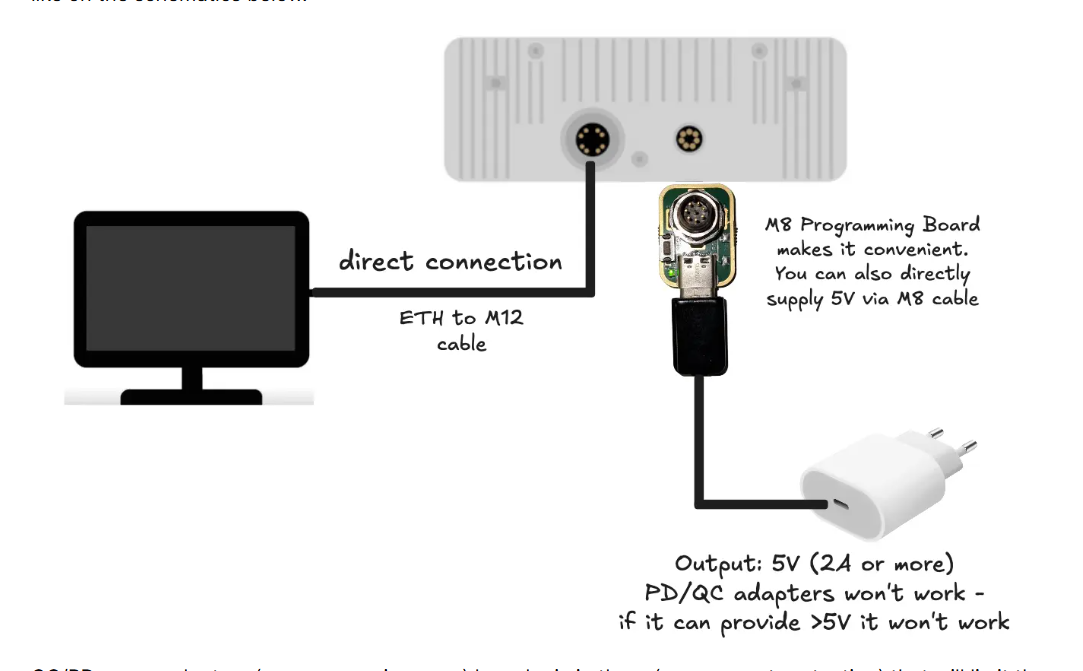

M8 board only works for the RVC2 devices. Full powering options -https://docs.luxonis.com/hardware/platform/deploy/powering-poe/ - this is for rvc2 only.

For OAK4, you need a POE+ (30W+ ideally). You can power the device via USB with PD, or dumb USB power that will provide the necessary wattage. For depthai, you will need M12 connection as well to communicate with the device.

Thanks,
Jaka
