  • Problem with inaccuracy when creating point cloud on host

  • Edited

I'm doing some non-standard operations with point cloud data and the built in point cloud features in the depthai library just weren't suited to my use case so I developed my own code to create a point cloud from disparity. However, when I calculate coordinates using the disparity I am getting some inaccuracy that I just can't seem to hunt down. For background this is being done with an Oak-D Pro Wide.

The process is as follows. Take the disparity from the camera and convert to depth. Convert the perpendicular depth to true depth. Use the true depth and the position where the pixel appears in the image to convert from true depth (thought of in spherical coordinates) to real world position in cartesian coordinates. Lastly I take the point cloud and take the highest value at each position to create something like a digital elevation model or a 2D occupancy grid.

This process mostly works but I have noticed a bit of inaccuracy when it comes to the height values in the point cloud. You can see this in the image where the values towards the edge of the field of view start to differ considerably from what they should be. The camera is pointed at a corner where one wall meets another so most of the DEM should be just the flat floor which is all the same height and then the walls which extend taller than the 2 meter max height I selected.

Image Link

There are two possible things I can think of that might be causing this. Firstly, when converting from disparity to cartesian using spherical coordinates, I assumed that the distribution of pixels within the image are linearly spaced. Meaning that if the horizontal FOV is 90 degrees and the image is 900 pixels wide, then each pixel you move away from the centerline is 0.1 degrees. This obviously made the math much easier in the calcSphericalConversionArrays function, but it may not be entirely correct. I was basing this decision on the idea that if the pixels were distributed on a non-linear angle spacing then there would be distortion in the image, but I don't see much of that. The second idea I had is that it is safe to assume that the pixels are linearly spaced, but I just simply had the wrong FOV values. I wasn't sure exactly how to calculate the effective FOV when using the rgb aligned depth so I just put the camera close to a wall with measuring tapes and calculated it manually. I ended up with HFOV=96 and VFOV=73. I have tried changing these values and checking but I haven't found a combination that seems to eliminate the problem entirely.

Here is the pipeline along with the functions I'm using to do the calculations.

# Create pipeline
pipeline = dai.Pipeline()
device = dai.Device()

# Define the nodes
camRgb = pipeline.create(dai.node.Camera)
left = pipeline.create(dai.node.MonoCamera)
right = pipeline.create(dai.node.MonoCamera)
stereo = pipeline.create(dai.node.StereoDepth)
imu = pipeline.create(dai.node.IMU)
sync = pipeline.create(dai.node.Sync)
x_out = pipeline.create(dai.node.XLinkOut)

# Set stream names
x_out.setStreamName("xout")

# Set properties for rgb node
rgbCamSocket = dai.CameraBoardSocket.CAM_A
camRgb.setBoardSocket(rgbCamSocket)
camRgb.setSize(1280, 800)
camRgb.setFps(fps)
camRgb.setMeshSource(dai.CameraProperties.WarpMeshSource.CALIBRATION)

# For now, RGB needs fixed focus to properly align with depth.
try:
    calibData = device.readCalibration2()
    lensPosition = calibData.getLensPosition(rgbCamSocket)
    if lensPosition:
        camRgb.initialControl.setManualFocus(lensPosition)
except:
    raise

# Set properties for left/right nodes
# The disparity is computed at this resolution, then upscaled to RGB resolution
monoResolution = dai.MonoCameraProperties.SensorResolution.THE_400_P
left.setResolution(monoResolution)
left.setCamera("left")
left.setFps(fps)
right.setResolution(monoResolution)
right.setCamera("right")
right.setFps(fps)

# Set properties for stereo node
stereo.setDefaultProfilePreset(dai.node.StereoDepth.PresetMode.HIGH_DENSITY)
stereo.initialConfig.setConfidenceThreshold(200)
stereo.initialConfig.setMedianFilter(dai.MedianFilter.KERNEL_5x5)
stereo.setLeftRightCheck(True)  # LR-check is required for depth alignment
stereo.setSubpixel(True)  # This adds a lot of lag on 800p mono resolution
stereo.setDepthAlign(rgbCamSocket)
stereo.setDisparityToDepthUseSpecTranslation(False)
stereo.setDepthAlignmentUseSpecTranslation(False)

# Set properties for IMU node
# imu.enableIMUSensor(dai.IMUSensor.ROTATION_VECTOR, 120)
imu.enableIMUSensor(dai.IMUSensor.GAME_ROTATION_VECTOR, 120)
imu.setBatchReportThreshold(1)
imu.setMaxBatchReports(1)

# Set properties for sync node
sync.setSyncThreshold(timedelta(milliseconds=30))
sync.setSyncAttempts(-1)  # Default, only sends message if all input nodes are in sync

# Linking
left.out.link(stereo.left)
right.out.link(stereo.right)
stereo.disparity.link(sync.inputs["disparity"])
camRgb.video.link(sync.inputs["video"])
imu.out.link(sync.inputs["imu"])
sync.out.link(x_out.input)

# Get max disparity to normalize the disparity images
disparityMultiplier = 255.0 / stereo.initialConfig.getMaxDisparity()
def calcDepthFromDisparity(disparity_cv2_frame):
    # Calculate the depth frame from disparity
    with np.errstate(divide='ignore', invalid='ignore'):
        depth = FOCAL_LENGTH_PIXELS * BASELINE / (disparity_cv2_frame / 8.0212)  # Produces perpendicular depth in cm
    depth[depth == np.inf] = np.nan  # Set the infinites (div by 0) back to null/0

    # Convert from perpendicular depth to true depth
    depth = depth * true_depth_coefs
    depth[depth > DEPTH_CAP] = np.nan  # Set everything past the depth cap to null/0

    # Create an image of depth for cv2
    depth_cv2_frame = (np.nan_to_num(depth) * 255 / DEPTH_CAP).astype(np.uint8)
    depth_cv2_frame = cv2.applyColorMap(depth_cv2_frame, cv2.COLORMAP_HOT)

    return depth, depth_cv2_frame


def calcTrueDepthCoefs():
    # Heading will always be zero since this is only calculating the distance compensation for spherical camera lens
    # Convert the heading from north to theta in spherical system, equation is 90deg-heading
    theta = 90 - 0

    # Compute the arrays for true depth conversion
    horiz_trig_rads_abs_array = (theta - abs(np.linspace(-HFOV / 2, HFOV / 2, num=IMAGE_WIDTH))) * (np.pi / 180)
    horiz_trig_rads_abs_array = np.tile(horiz_trig_rads_abs_array, (IMAGE_HEIGHT, 1))
    vert_trig_rads_abs_array = (90 - abs(np.linspace(-VFOV / 2, VFOV / 2, num=IMAGE_HEIGHT))) * (np.pi / 180)
    vert_trig_rads_abs_array = np.transpose(np.tile(vert_trig_rads_abs_array, (IMAGE_WIDTH, 1)))
    triang_horiz_hypot = 1 / np.sin(horiz_trig_rads_abs_array)
    triang_vert_hypot = 1 / np.sin(vert_trig_rads_abs_array)
    triang_vert_adj = np.sqrt(np.square(triang_vert_hypot) - 1)
    true_depth_coef_array = np.sqrt(np.square(triang_horiz_hypot) + np.square(triang_vert_adj))

    return true_depth_coef_array


def calcSphericalConversionArrays(heading, phi):
    # Convert the heading from north to theta in spherical system, equation is 90deg-heading
    theta = 90 - heading

    # Compute the arrays for real world position conversion
    horiz_angle_rads_array = (theta + np.linspace(HFOV / 2, -HFOV / 2, num=IMAGE_WIDTH)) * (np.pi / 180)
    horiz_angle_rads_array = np.tile(horiz_angle_rads_array, (IMAGE_HEIGHT, 1))
    vert_angle_rads_array = (phi + np.linspace(-VFOV / 2, VFOV / 2, num=IMAGE_HEIGHT)) * (np.pi / 180)
    vert_angle_rads_array = np.transpose(np.tile(vert_angle_rads_array, (IMAGE_WIDTH, 1)))

    return horiz_angle_rads_array, vert_angle_rads_array


def calcWorldCoordinates(depth, heading, pitch, min_height, max_height, model_voxel_size):
    # Calculate the real world coordinates
    horiz_angle_rads, vert_angle_rads = calcSphericalConversionArrays(heading, pitch)
    # Convert from true depth to world position in meters
    x_coords = depth / 100 * np.sin(vert_angle_rads) * np.cos(horiz_angle_rads)
    y_coords = depth / 100 * np.sin(vert_angle_rads) * np.sin(horiz_angle_rads)
    z_coords = depth / 100 * np.cos(vert_angle_rads)
    z_coords = z_coords + 0.60  # Account for the height of camera on tripod

    # Select points within a height range in the point cloud
    selected_indices = np.where((z_coords >= min_height) & (z_coords <= max_height))# & (x_coords != 0) & (y_coords != 0))
    # Round the x and y coords to the selected resolution and the z coords to 1cm resolution
    x_filtered = np.round(x_coords[selected_indices].flatten() / model_voxel_size, decimals=2)
    y_filtered = np.round(y_coords[selected_indices].flatten() / model_voxel_size, decimals=2)
    z_filtered = np.round(z_coords[selected_indices].flatten(), decimals=2)

    return x_filtered, y_filtered, z_filtered

  • jakaskerl replied to this.
  • jakaskerl
    I had some time this weekend to get the code implemented with the proper equations like you showed and it worked exactly as it should. Now the largest inaccuracy that I can see is around a couple centimeters which is exactly what I need.

    Thank you for all the help!

    silo

    silo I assumed that the distribution of pixels within the image are linearly spaced. Meaning that if the horizontal FOV is 90 degrees and the image is 900 pixels wide, then each pixel you move away from the centerline is 0.1 degrees. This obviously made the math much easier in the calcSphericalConversionArrays function, but it may not be entirely correct.

    That surely is a source of error since the relation is not linear. I'd suggest you use the intrinsic matrix of the calibrated camera to backproject the pixels. This should give you a much more accurate result.

    silo calcDepthFromDisparity

    I also suggest you use depth output from the stereo node to produce depth since it should take correct intrinsics into account which will result in a more accurate depth than your empirically set conversion.

    Thanks,
    Jaka

    • silo replied to this.

      jakaskerl I also suggest you use depth output from the stereo node to produce depth since it should take correct intrinsics into account which will result in a more accurate depth than your empirically set conversion.

      I actually came across the depth output from the stereo node a while back and wrote some code to explore using it. Ultimately I had trouble figuring out what exactly the term "depth" meant in the documentation so I never ended up using it. Is the depth output coming from the stereo node just the true distance (not perpendicular) between the camera sensor and the object? Can I just treat the depth output as the r when thinking in terms of spherical coordinates?

      jakaskerl That surely is a source of error since the relation is not linear. I'd suggest you use the intrinsic matrix of the calibrated camera to backproject the pixels. This should give you a much more accurate result.

      I have to apologize in advance because this is outside of my area of expertise and I don't fully understand all these concepts.

      Could you expand on the backproject process or possibly provide a link to an example or explanation?

      Also would it be possible to use the intrinsic matrix to calculate the arrays in calcSphericalConversionArrays() that signify the theta and phi values for each pixel position in the depth image?

        silo Is the depth output coming from the stereo node just the true distance (not perpendicular) between the camera sensor and the object? Can I just treat the depth output as the r when thinking in terms of spherical coordinates?

        The depth is only the Z component (so perpendicular). To get get X and Y you need some trigonometry - we have a node for that - https://docs.luxonis.com/software/depthai/examples/spatial_location_calculator/

        silo Could you expand on the backproject process or possibly provide a link to an example or explanation?

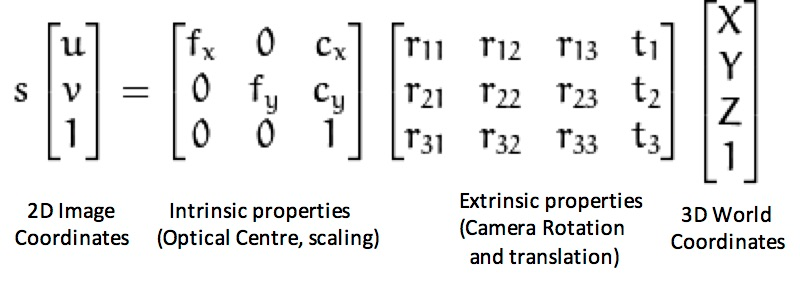

        Essentially, each point in space is described by a pixel on your image. The intrinsic matrix is the transform that governs where each point in the view will fall on the screen. But information is lost when converting 3D to 2D.. so when you invert the transform you basically get a ray for each pixel on the screen, that goes from the optical center to infinity. Now you need depth (Z) to tell you where the point position is in 3D space. You are looking at the intersection between Z plane and the ray.

        Thanks,
        Jaka

        • silo replied to this.

          jakaskerl

          I included the depth output from the stereo node and did some rough comparisons against the calculated depth from disparity that I was using. The calculated depth and the stereo node depth were actually very close. The largest difference in depth I saw between the two was about 20cm at 5m away. But most of the time the two were within 5cm.

          I still have a few questions about the intrinsic matrix though. I saw in another thread that somebody was asking if the intrinsic matrix changes when the image is undistorted. I'm not sure if it was Erik or yourself that responded but I believe the explanation was that the intrinsic matrix doesn't change. I'm guessing that this is because the intrinsic matrix is calculated with the intent that it will work with the undistorted image, but I don't fully understand it.

          Would the process of aligning the stereo disparity/depth with the rgb camera would cause the intrinsic matrix to no longer be accurate? I have noticed that on the wide cameras when the stereo is aligned to RGB there is a pretty significant amount of cropping going on. I don't fully understand all the details of the intrinsic matrix, but my gut would lead me to believe that if the image is staying the same size (1280x800) both before and after the rgb stereo alignment but the FOV is changing significantly due to the cropping then something must be changing.

          Does depthai recognize that the stereo is being aligned to RGB and calculate a modified intrinsic matrix? In the code I set up the pipeline as shown in the original post and then get the intrinsics like this:

          with device:

          # Get calibration info
              calib_data = device.readCalibration()
              intrinsics = calib_data.getCameraIntrinsics(dai.CameraBoardSocket.CAM_C)

          The reason I ask is that I was able to get chatgpt to give me some equations to calculate the spherical coordinate arrays that match up to each pixel, but the results don't seem quite right. I'm wondering if it's possible that the intrinsic matrix is describing the non-aligned image and that's why I'm running into trouble when trying to use the RGB aligned image.

            silo
            When aligning the disparity image to center camera, the points on the image are essentially reprojected back to 3D from 2D and those 3D points are then (via RGB intrinsics) displayed on the central camera. You need CAM_A intrinsics for this.

            Thanks,
            Jaka

            • silo replied to this.

              jakaskerl

              Thanks for the info. I will give it a shot with the CAM_A intrinsics and see if I can get something that looks a little better.

              Is there an easy way to get the effective horizontal and vertical FOVs of the disparity/depth after it has been aligned to the center camera? I did some rough calculations with tape measures and got HFOV=96 and VFOV=73, but I wanted to verify those numbers. Can I just use the CAM_A intrinsic matrix and the equations below? I've seen a reference to a method "calibData.getFov" in some of the documentation, could I use this method as an alternative way to get the effective FOV of the RGB aligned depth image?

              FOV Equations Image

              This is slightly off topic but could you clarify a couple questions about the PointCloud node? I couldn't find a ton of info on the pointcloud node in the documentation but it says that the input to the node is is inputDepth(ImgFrame). I couldn't find any place where it specified if this has to be the standard non-RGB aligned depth frame that comes out of the StereoDepth node, or if it could also accept an RGB-aligned depth frame from the StereoDepth node. Is the PointCloud node aware of what type of depth frame is being used as an input and able to compensate the calculated point cloud for those differences?

                silo I've seen a reference to a method "calibData.getFov" in some of the documentation, could I use this method as an alternative way to get the effective FOV of the RGB aligned depth image?

                FOV Equations Image

                Yes this should work but these transforms expect the image to be undistorted as they are derived from the pinhole model.

                silo Is the PointCloud node aware of what type of depth frame is being used as an input and able to compensate the calculated point cloud for those differences?

                To my knowledge, pointcloud node merely creates the pointcloud from depth intrinsics. It knows which intrinsics to use from the ImageFrame metadata (instanceNum).

                Thanks,
                Jaka

                • silo replied to this.
                  9 days later
                  • Best Answerset by silo

                  jakaskerl
                  I had some time this weekend to get the code implemented with the proper equations like you showed and it worked exactly as it should. Now the largest inaccuracy that I can see is around a couple centimeters which is exactly what I need.

                  Thank you for all the help!
