Oak D-lite basic raspberry pi setup

daviepump

Hi, ive been trying for a few days now to get an old KS Oak-D-Lite working on a Raspberry pi 3 for a school project. all i need is to be able to display the feed via HDMI from the oak, ive tried a bunch of the RPi images and followed the installation instructions found on the page "Deploy with Raspberry Pi" but cant get it working., i tried the linux instructions

"sudo wget -qO- https://docs.luxonis.com/install_depthai.sh | bash"

and it comes up with

"Failed installing dependencies. Could be a bug in the installer or unsupported platform. Open a bug report over at luxonis/depthai - exited with status 128 at line 202"

anyone got some insight or advice to help me out 🙂 :

jakaskerl

daviepump Which OS are you using?

daviepump "Deploy with Raspberry Pi" but cant get it working

Apart from dependencies, are you getting any errors? If you install depthai via pip, does it not work?

Thanks,
Jaka

Adham

I have the same problem with Raspberry pi5

Can you help me to solve that ,please?

OskarSonc

Adham - did you try to install depthai via pip or clone the depthai-core and then just ran python .\examples\python\install_requirements.py

Adham

OskarSonc

When I try to install dependencies ,it shows me this error

Adham

OskarSonc

python3 -m pip install --upgrade pip

python3 -m pip install depthai

When I try to do these instructions ,it shows me the next error " externally-managed-environment "

Adham

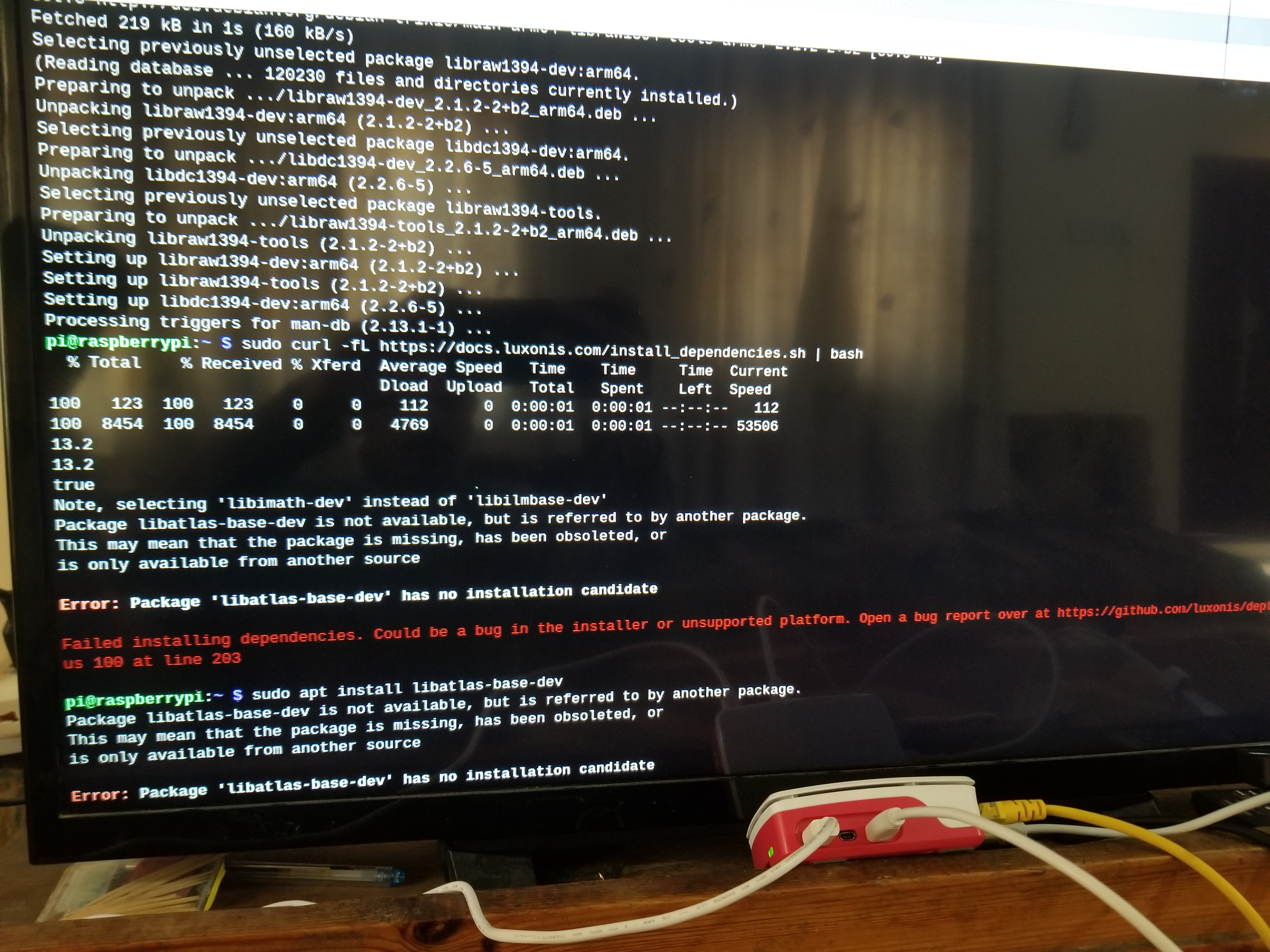

Adham I try to install libatlas-base-dev ,and it shows the next error " libatlas-base-dev has no installation candidate

OskarSonc

@Adham - On the newer Raspberry Pi OS / Debian, the system Python is marked as “externally managed”, so pip won’t install packages directly into it.

The recommended way is to use a virtual environment:

python3 -m venv depthai-venv
source depthai-venv/bin/activate
python -m pip install --upgrade pip
pip install depthai

Then run your DepthAI scripts from the same terminal (with the venv activated).

Adham

OskarSonc That is worked

Thank you friend
