OAK-1 W - Light Exposure Issue

CesarEizo

Hello everyone.

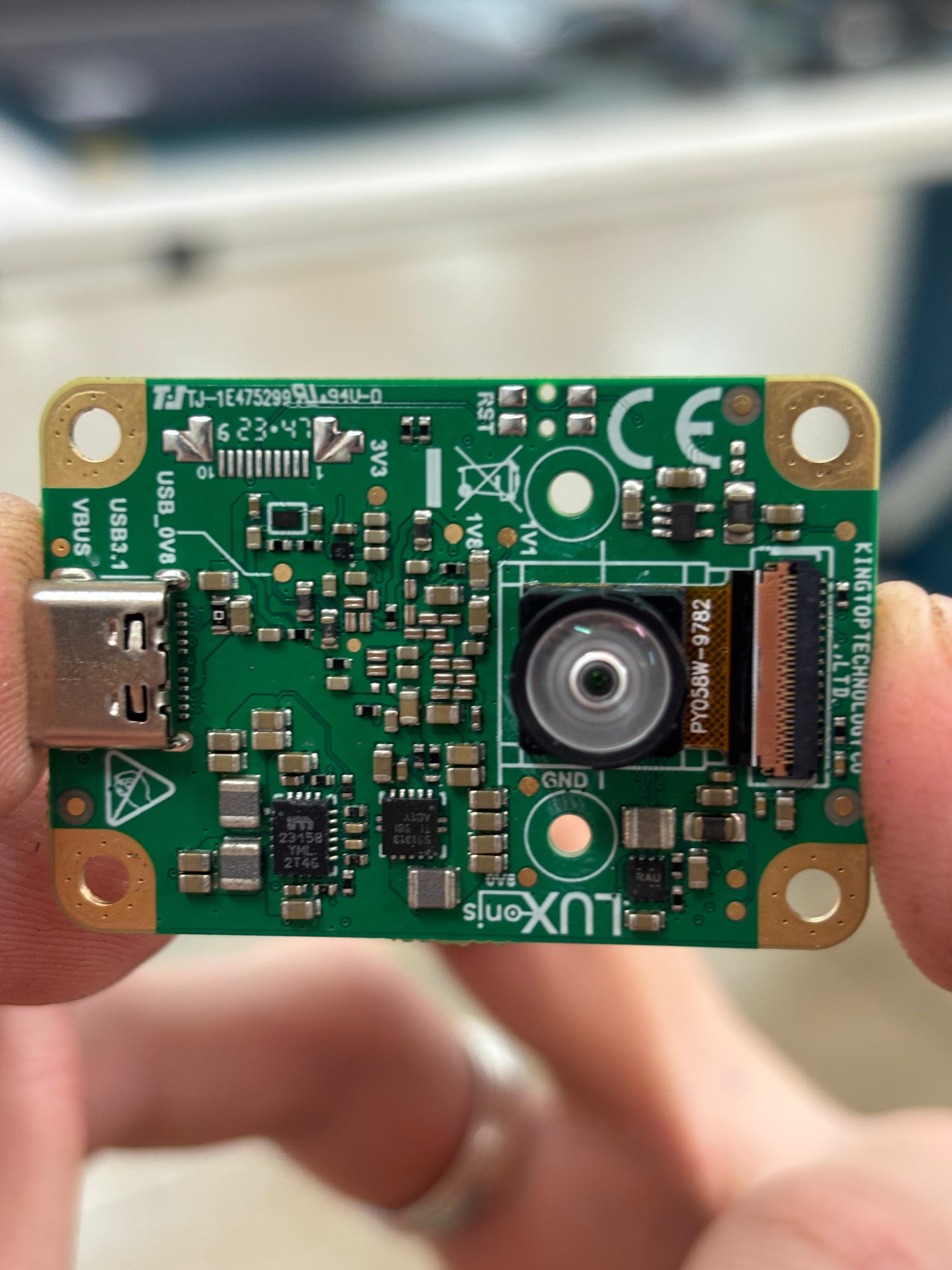

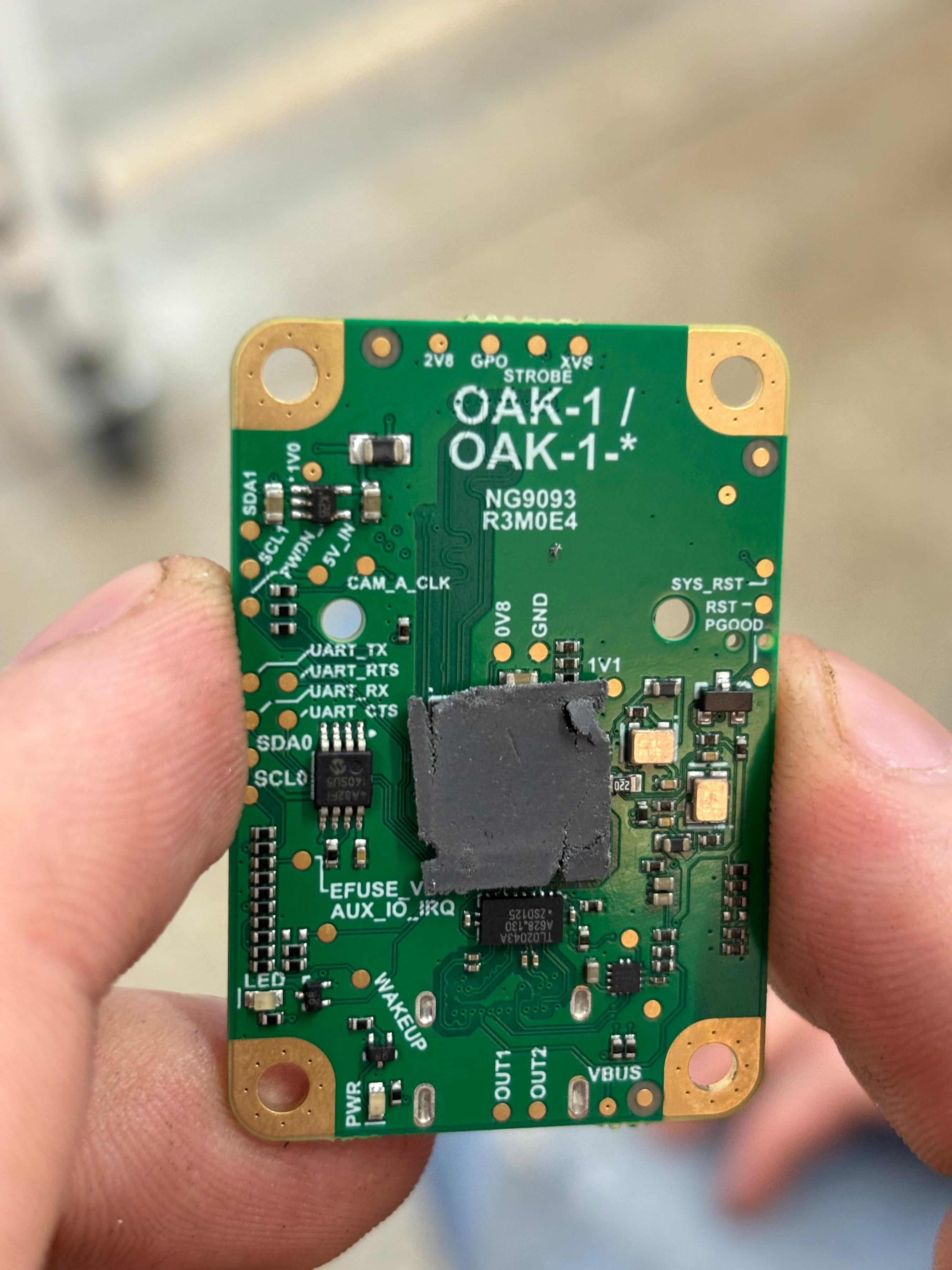

We are using the OAK-1 W OV9782 product in one of our equipment models as an FPV camera. The equipment is a drone, an unmanned aircraft.
The OAK-1 camera is installed so that the USB-C connection is protected within the frame of the drone, to ensure that the USB-C connection and cable do not come into contact with moisture or water during flights on rainy days.

Some cameras started to show a "purple" effect in their image, I carried out some tests according to other discussions here on the forum, such as changing the exposure and ISO values, but I did not obtain significant results, after applying automotive film, I obtained satisfactory results, Below are images for better viewing:

Figure 01: ISO:1000 Exposure: 100000

Figure 02: ISO:100 Exposure: 10000

Figure 03: ISO:100 Exposure: 10000
50% visibility film

Figure 04: ISO:100 Exposure: 10000
20% visibility film

Figure 05: ISO:100 Exposure: 10000
05% visibility film

During the tests carried out, it was observed that half of the image was normal and the other had a change in color. Photo below:

After carrying out the tests, an analysis was carried out in the laboratory of possible defects in the lens. When placed under a microscope, small “cracks” were identified around the lens, below are photos for better analysis:

Could this "problem" be related to these "cracks" in the lens? I will use the film for a while to see if the film application solution is valid. Anyone with a similar problem that they solved?

Best regards,

jakaskerl

CesarEizo
Not sure about the cracks but I think the issue might be that the camera is missing an IR filter. Do you have any IR CUT filter you can test with to check if the issue disappears?

Thanks,
Jaka

CesarEizo

Hi Jaka !

It makes sense, but does it come with an original IR filter? Because the camera was used for some time, and the image was normal, then this issue appeared.

If the IR filter doesn't come with it, the problem was supposed to appear at the beginning, right? And if it comes with an IR filter, what could have happened to have it "broken"?

Best regards.

jakaskerl

CesarEizo
OV9782 cameras are known to have missing IR filters since the same sensor is used in stereo setups as well (with active stereo). I'd be surprised if the sensor had the IR CUT filter and it shattered after, but it could be possible I guess. Can be caused by HF vibrations / mechanical stress / thermal expansion.

From the images you have sent I am unable to tell whether the shatters could be the cause. Do you have another camera to test - are these shatters present there?

Do you have a workaround? If not, support@luxonis.com for RMA.

Thanks,
Jaka

MauroTanure

Hi @jakaskerl !

Thank you for the quick response. I'm working with César on this matter.

So, from what I'm understanding, we have two hypothesis, correct?

Important consideration: this happened with other cameras too, at least 2 in a total 5 in operation.

Hypothesis A
- The camera was shipped missing the IR filter but we only noted the difference when flying our drones in a bright day.

Hyphotesis B
- The IR filter was damaged (explaining the cracks) due to mechanical vibrations and/or thermal stress, then over time we noticed the pinky effect.

Question:
1- Are those "cracks" normal?
2- By using the serial numbers, could you confirm if the unit have with or without the IR filter?

jakaskerl

MauroTanure
If devices are the same, we can clear both.

A: Check other three devices in the sunlight and check for missing IR filter.

B: Check if other three devices have cracks.

Then cross-compare.

I'd say it's more likely that the cameras were shipped lacking IR CUT filter. I can't say that for sure even with serial numbers.

Thanks,
Jaka

MauroTanure

Unfortunately, we don't have easy access to the other three cameras since they are in drones operating in different countries.

What do you mean by "we can clear both"?

Thanks.

jakaskerl

MauroTanure
Both hypothesis.

Best to write to support@luxonis.com and we will replace the devices, if there is no way to check. We will inspect them locally.

Thanks,
Jaka

MauroTanure

Ok. We'll try to work around it, provisionally, and when it's possible we'll return them.

Thanks for the prompt response.
