Bad depth accuracy with Spatial Filter

VLoing

Hello,
I've done some accuracy tests activating or not some post-processing filters.
With no filter, with speckle filter or with temporal filter, the results are quite correct.

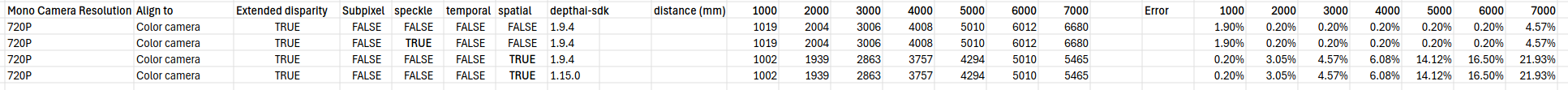

But with spatial filter, with default values, the depth accuracy is pretty bad as you can see in the following table.

I've tried last sdk version and an old one with same results.

My camera is Oak-D S2 and I used a code based on this one https://docs.luxonis.com/software/depthai/examples/stereo_depth_from_host

Any thoughts?

jakaskerl

Hi @VLoing
Can you try with API as well? Or post the MRE so I can test it out.

Thanks,
Jaka

VLoing

Sure,
Here is a MRE for the object at 7m.
You must put "left_7m.png" (resp. "right_7m.png") image in a left/ (resp. right/) folder, both folders in same parent folder.
I had to anonymize the images, but I obtained the same depth in the ROI as in the non-anonymized images:

using speckle filter or no filter, I got a distance of 6680 mm (4.6% error)
using spatial filter, I got a distance of 5465 mm (21.9% error)

#!/usr/bin/env python3

import cv2
import depthai as dai
from time import sleep
import datetime
import os

dataset_path = '/PATH/TO/LEFT_RIGHT_FOLDERS/'
output_root = dataset_path

show = False
save_depth = False
rectify = True


config_dict = {
            "leftRightCheck": True,  # Better handling for occlusions
            "extendedDisparity": True,  # Closer-in minimum depth, disparity range is doubled.
            "subpixel": False,  # Better accuracy for longer distance, fractional disparity 32-levels
            "speckleFilter": {"enable": False},
            "spatialFilter": {"enable": True},
        }

if save_depth:
    out_depth_path = os.path.join(output_root, 'depth')
    if not os.path.exists(out_depth_path):
        os.makedirs(out_depth_path)


lrcheck = config_dict["leftRightCheck"]   # Better handling for occlusions
extended = config_dict["extendedDisparity"]  # Closer-in minimum depth, disparity range is doubled. Unsupported for now.--> VL: seems supported
subpixel = config_dict["subpixel"]   # Better accuracy for longer distance, fractional disparity 32-levels


class DatasetManager:
    def __init__(self, path, left_folder, right_folder):
        self.path = path
        self.index = 0
        self.left_folder = left_folder
        self.right_folder = right_folder
        self.left_path = os.path.join(self.path, self.left_folder)
        self.right_path = os.path.join(self.path, self.right_folder)

        self.left_names = self.get_sorted_images(self.left_path)
        self.right_names = self.get_sorted_images(self.right_path)
        self.length = len(self.left_names)

        if self.length == 0:
            raise RuntimeError("No dataset found at {}".format(path))

        assert self.length == len(self.right_names), "Not same number of images in left and right folders"

    def get_sorted_images(self, path):
        image_files = [file for file in os.listdir(path)]
        return sorted(image_files)

    def get(self):
        return os.path.join(self.left_path, self.left_names[self.index]), os.path.join(self.right_path, self.right_names[self.index])

    def get_name(self):
        return self.left_names[self.index], self.right_names[self.index], self.left_names[self.index].split('_')[1].split('.')[0]

    def next(self):
        self.index = (self.index + 1) % self.length
        return self.get()

    def prev(self):
        self.index = (self.index - 1) % self.length
        return self.get()

    def __len__(self):
        return self.length

dataset = DatasetManager(dataset_path, 'left', 'right')

# Create pipeline
pipeline = dai.Pipeline()

# Define sources and outputs
camRgb = pipeline.create(dai.node.ColorCamera)
stereo = pipeline.create(dai.node.StereoDepth)

monoLeft = pipeline.create(dai.node.XLinkIn)
monoRight = pipeline.create(dai.node.XLinkIn)
rgb = pipeline.create(dai.node.XLinkIn)

xoutDepth = pipeline.create(dai.node.XLinkOut)

monoLeft.setStreamName("in_left")
monoRight.setStreamName("in_right")
rgb.setStreamName("in_rgb")

xoutDepth.setStreamName("depth")

# Properties
camRgb.setBoardSocket(dai.CameraBoardSocket.CAM_A)
camRgb.setResolution(dai.ColorCameraProperties.SensorResolution.THE_1080_P)

stereo.setDefaultProfilePreset(dai.node.StereoDepth.PresetMode.HIGH_DENSITY)
stereo.setRectifyEdgeFillColor(0) # Black, to better see the cutout
stereo.setLeftRightCheck(lrcheck)
stereo.setExtendedDisparity(extended)
stereo.setSubpixel(subpixel)
stereo.setRectification(rectify)

monoLeft.out.link(stereo.left)
monoRight.out.link(stereo.right)
stereo.depth.link(xoutDepth.input)


config = stereo.initialConfig.get()
config.postProcessing.speckleFilter.enable = config_dict["speckleFilter"]["enable"]
config.postProcessing.spatialFilter.enable = config_dict["spatialFilter"]["enable"]
stereo.initialConfig.set(config)

stereo.setPostProcessingHardwareResources(3, 3)
stereo.setDepthAlign(dai.CameraBoardSocket.CAM_A)

streams = ['depth']

print("Connecting and starting the pipeline")
# Connect to device and start pipeline
with dai.Device(pipeline) as device:

    inStreams = ["in_left", "in_right"]
    inStreamsCameraID = [dai.CameraBoardSocket.CAM_B, dai.CameraBoardSocket.CAM_C]

    in_q_list = []
    for s in inStreams:
        q = device.getInputQueue(s)
        in_q_list.append(q)

    # Create a receive queue for each stream
    q_list = []
    for s in streams:
        q = device.getOutputQueue(s, 8, blocking=False)
        q_list.append(q)

    # Need to set a timestamp for input frames, for the sync stage in Stereo node
    timestamp_ms = 0
    index = 0
    prevQueues = q_list.copy()
    while True:
        # Handle input streams, if any
        if in_q_list:
            dataset_size = len(dataset)  # 1  # Number of image pairs
            frame_interval_ms = 100
            dataset.index = index

            for i, q in enumerate(in_q_list):
                if q.getName() == "in_left":
                    path = dataset.get()[0]
                elif q.getName() == "in_right":
                    path = dataset.get()[1]
                data = cv2.imread(path, cv2.IMREAD_GRAYSCALE)
                height, width = data.shape
                data = data.reshape(height*width)
                tstamp = datetime.timedelta(seconds=timestamp_ms // 1000,
                                            milliseconds=timestamp_ms % 1000)
                img = dai.ImgFrame()
                img.setData(data)
                img.setTimestamp(tstamp)
                img.setInstanceNum(inStreamsCameraID[i])
                img.setType(dai.ImgFrame.Type.RAW8)
                img.setWidth(width)
                img.setHeight(height)
                q.send(img)
                # print("Sent frame: {:25s}".format(path), "timestamp_ms:", timestamp_ms)
            timestamp_ms += frame_interval_ms
            index = (index + 1) % dataset_size
            sleep(frame_interval_ms / 1000)

        queues = q_list.copy()

        def ListDiff(li1, li2):
            return list(set(li1) - set(li2)) + list(set(li2) - set(li1))

        diff = ListDiff(prevQueues, queues)
        for s in diff:
            name = s.getName()
            cv2.destroyWindow(name)
        prevQueues = queues.copy()

        for q in queues:
            if q.getName() in ["left", "right"]: continue
            data = q.get()
            frame = data.getFrame()

            _, _, img_prefix = dataset.get_name()

            if q.getName() == 'depth':
                if save_depth:
                    cv2.imwrite(os.path.join(out_depth_path, f'depth_{img_prefix}.png'), frame)
                print(f"Estimated depth at pixel (712, 955): {frame[712, 955]} mm")
            if show:
                cv2.imshow(q.getName(), frame)

        if index == 0:
            break
        key = cv2.waitKey(1)
        if key == ord("q"):
            break

jakaskerl

Hi @VLoing
Can't use your MRE; the depth I get is terrible. My device also has different intrinsics so it won't work. Make sure you use proper syncing as there could be a delay in frames so the stereo algorithm can't match them properly. Also, always use a median filter; only checking a single pixel (especially from host images) will likely produce very noisy output.

Thanks,
Jaka

VLoing

Hi @jakaskerl ,
Thanks for taking a look at it.
Due to the cropping of the images for privacy reasons, some artifacts have indeed appeared in the depth map. However, within the ROI, the depth map is quite similar to the one generated using the original, non-cropped images.

So for now, I think I'll just skip using the spatial filter.
Best,
